● Frequency rang 9kHz - 1.5GHz

● -160dBm Displayed Average Noise Level (DANL)

● Phase noise -80dBc/Hz@1GHz and offset at 10 kHz

● Total amplitude accuracy <0.7dB

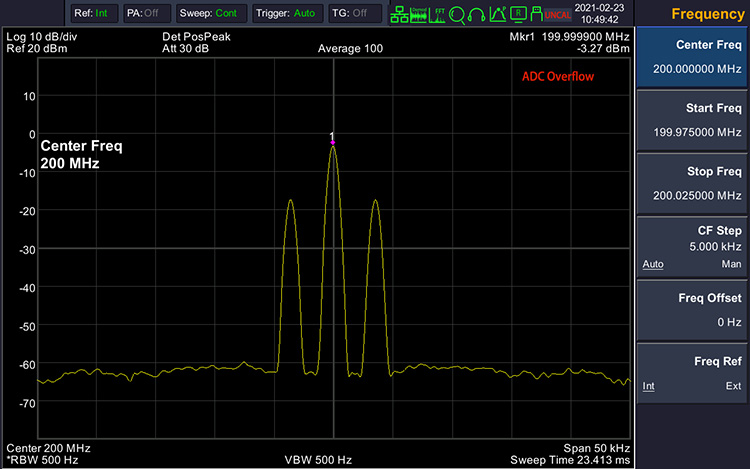

● 1Hz minimum resolution bandwidth (RBW)

● EMI pre-compliance test kit, optional EMC test software

● Optional tracking generator (standard tracking generator hardware, can be remotely upgraded according to needs)

● Waterfall plot graphic, modulation signal quality analysis, audio demodulation, ect. multiple general and extended test functions

● Standard Pass/Fail on-site test and alert function

● Adopt all-digital intermediate frequency technology

● Multiple interfaces: USB Host, USB Device, LAN, earphone interface, HDMI

● 9-inch LCD, high resolution 1280×800 pixels

Car remote keys, TPMS tire pressure modules and small wireless modules usually use ASK/FSK modulation. XSA800 can complete the capture of ASK/FSK signals, and directly obtain its center frequency, power and offset parameters.

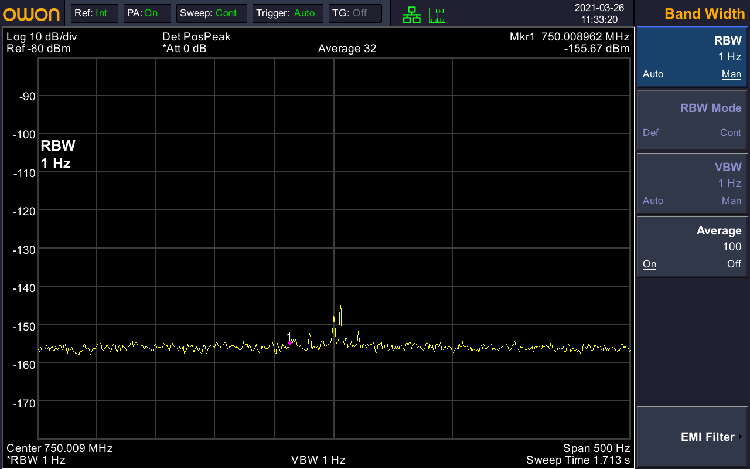

-160 dBm DANL (Displayed Average Noise Level), can observe weaker small signals

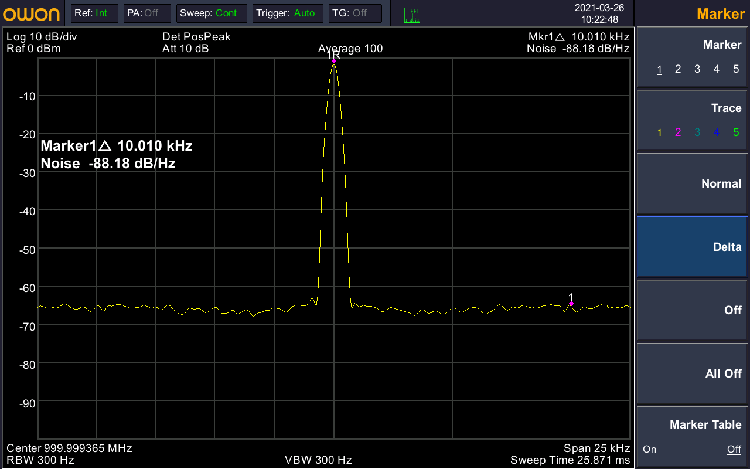

Phase Noise < –80 dBc/Hz @1GHz at 10 kHz offset

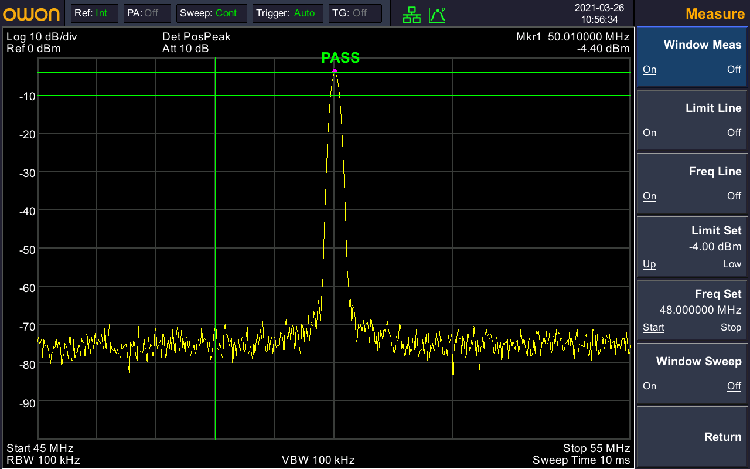

Quickly determine if the test results pass

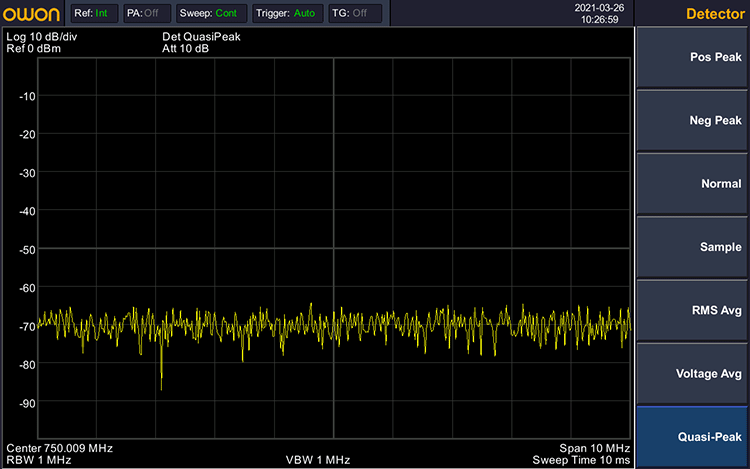

Equipped with EMI filter (6dB) and quasi-peak detector as standard, it is more accurate for EMI pre-test and diagnosis, and complete testing and production report can be completed by using supporting software.

Built-in more than 200 mainstream EMC test standards and regulations templates. The user selects the corresponding template, and the software automatically sets the spectrum analyzer and records the test data. The data and regulations can be compared on the same screen. Users can also customize regulations for comparative analysis.
