HDS200シリーズ 2チャンネル・ハンドヘルド・オシロスコープ | 新製品リリース

- 2021/7/20 -

New Arrival

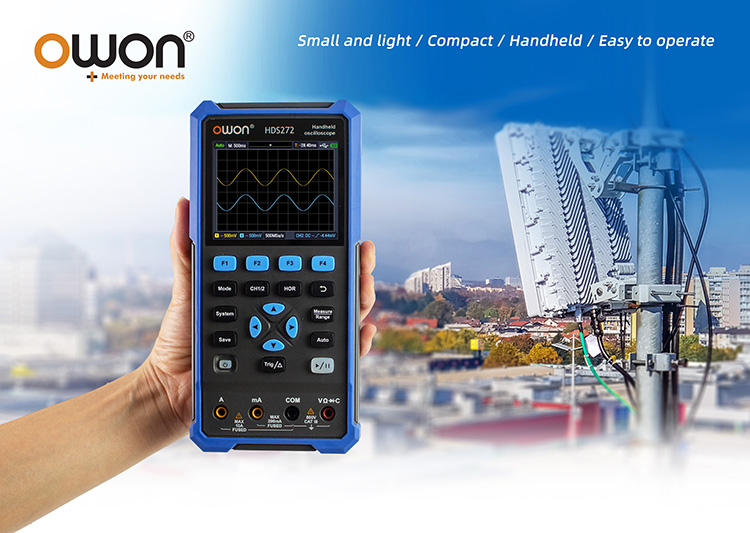

OWON newly launched HDS200 series handheld three-in-one oscilloscope. This series integrates 70MHz oscilloscope, 20,000 counts multimeter, 25MHz waveform generator, small and light, defined as an entry-level handheld oscilloscope, suitable for outdoor maintenance and rapid on-site measurement.

Product Features

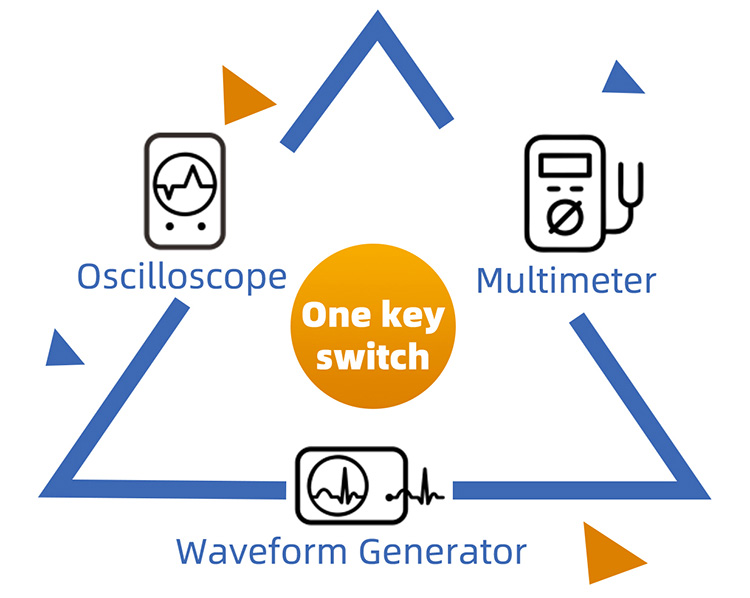

HDS200 series handheld oscilloscope, integrated 70MHz oscilloscope, 20,000 counts multimeter, 25MHz waveform generator; 3.5-inch high-resolution, high-contrast color LCD display, suitable for outdoor use; 18650 lithium battery power, providing up to 6 hours working time; USB Type-C interface, support adapter or power bank power supply, support PC software connection; support self-calibration function.

Excellent oscilloscope performance

+ Dual channels input, bandwidth up to 70 MHz, max. real-time sampling rate 250MSa/s

+ Max 10,000 wfms/s waveform refresh rate

+ Max 8k record length

+ Cursor measurement function

+ Multiple auto measurement functions

+ XY function

+ One-key auto set function, easy to detect and debug

Multimeter

+ 20,000 counts, true RMS

+ Voltage, current, resistance, diode, capacitance measuring, and continuity test

+ Auto range function, easy to detect and debug

+ Max AC 750V, DC 1000V input voltage

+ Independent input of multimeter and oscilloscope

+ Reading hold function

+ Relative measurement function

Waveform Generator
(Only for HDS242S & HDS272S)

+ Output sine, square, ramp, pulse, and built-in special waveforms

+ Max 25MHz frequency output

+ 0.1Hz frequency resolution

+ 14-bit vertical resolution, 125MSa/s high sampling rate

+ 8k waveform length

+ Max 5Vpp output amplitude

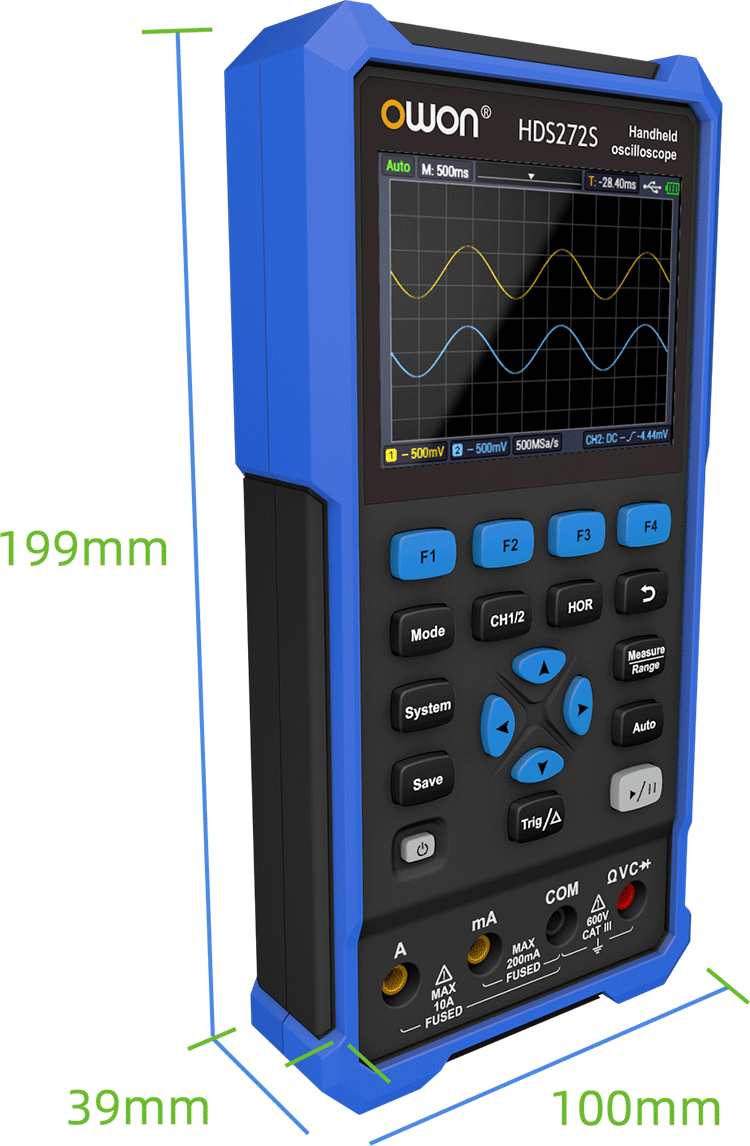

Small body, big screen

One-handed grip; Integrated encapsulation design, not easy to peel off after long-term use, and the hand feel is better.

3.5-inch (320×240) high-resolution TFT color LCD screen, clear and delicate display for observing waveform details.

Powerful, safe and reliable

Independent input of multimeter and oscilloscope; plastic shell design of the BNC makes the test safer.

Excellent Power Management

Powered by 4400mAh lithium battery, work continuously for about 6 hours. A single battery can supply power normally. Easy battery replacement.

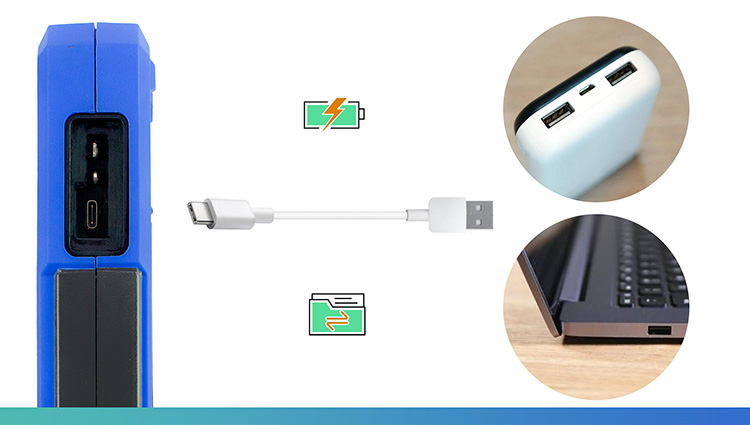

USB Type-C interface can be charged by an adapter or a power bank, and supports PC software connection.

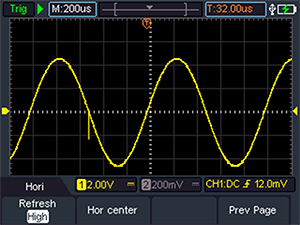

High refresh, deep storage oscilloscope

Max 10,000 wfms/s refresh rate, 8k record length, easy to capture exceptional and low probability events.

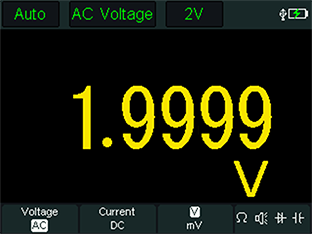

Professional Multimeter with True RMS

20,000 counts, support measuring voltage, current, resistance, diode, capacitance, and continuity test; support relative value measurement.

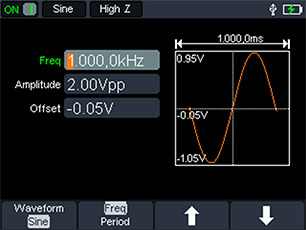

High-precision waveform generator

Output sine, square, ramp, pulse, and built-in special waveforms. Max 25MHz frequency output, 0.1Hz frequency resolution.

You can click to enter the HDS200 series handheld oscilloscope product page of our official website for more parameter details.
