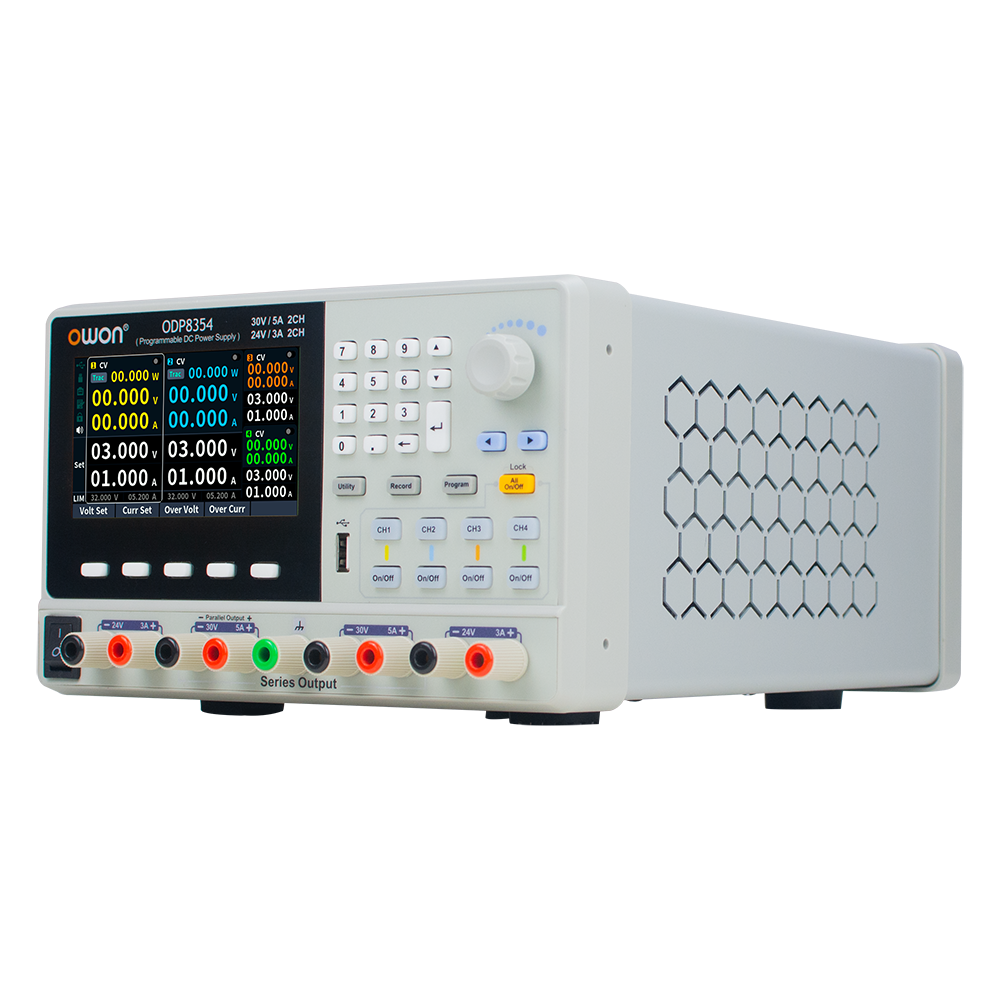

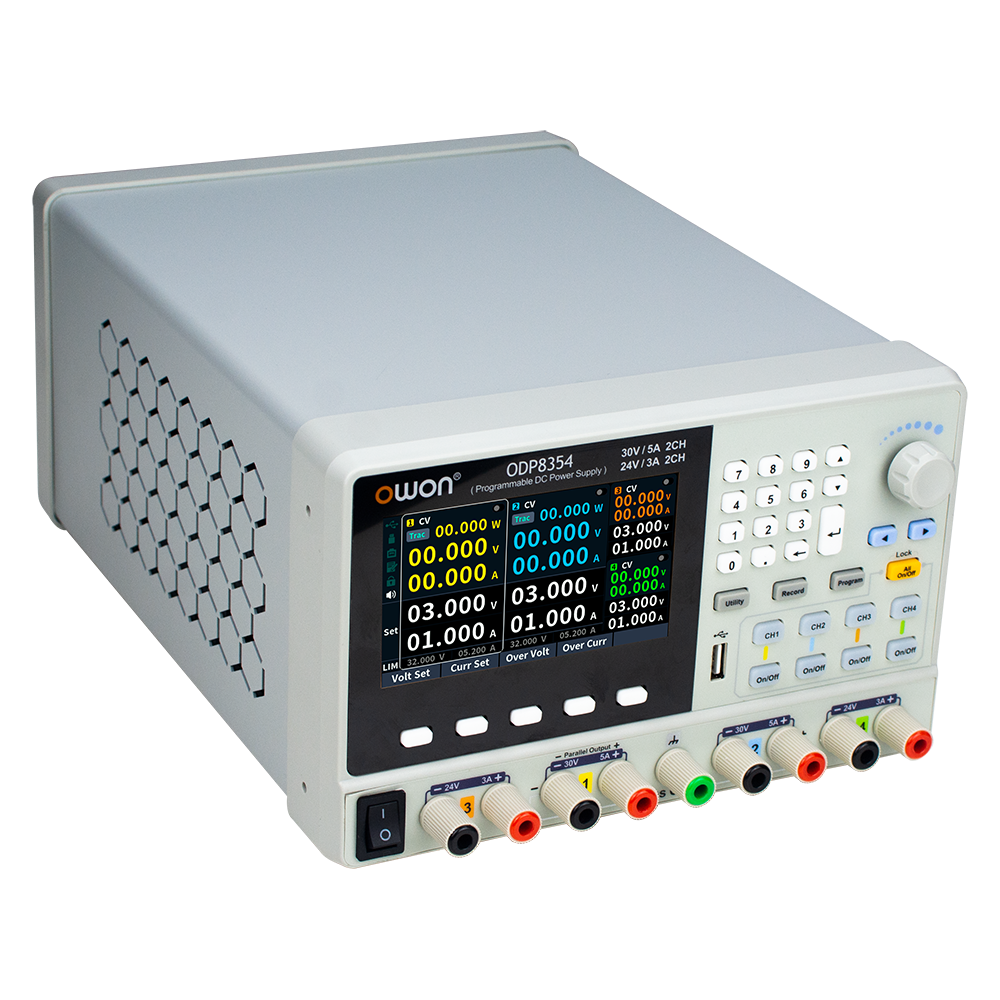

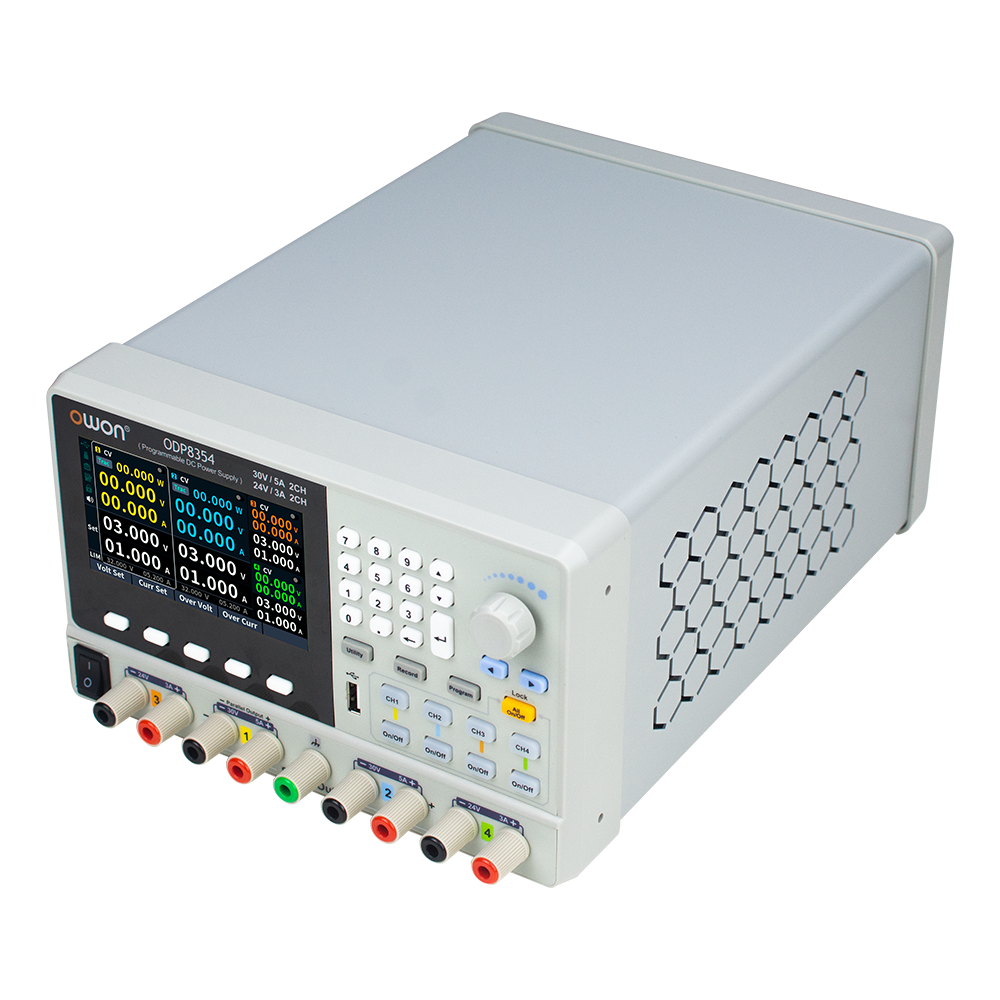

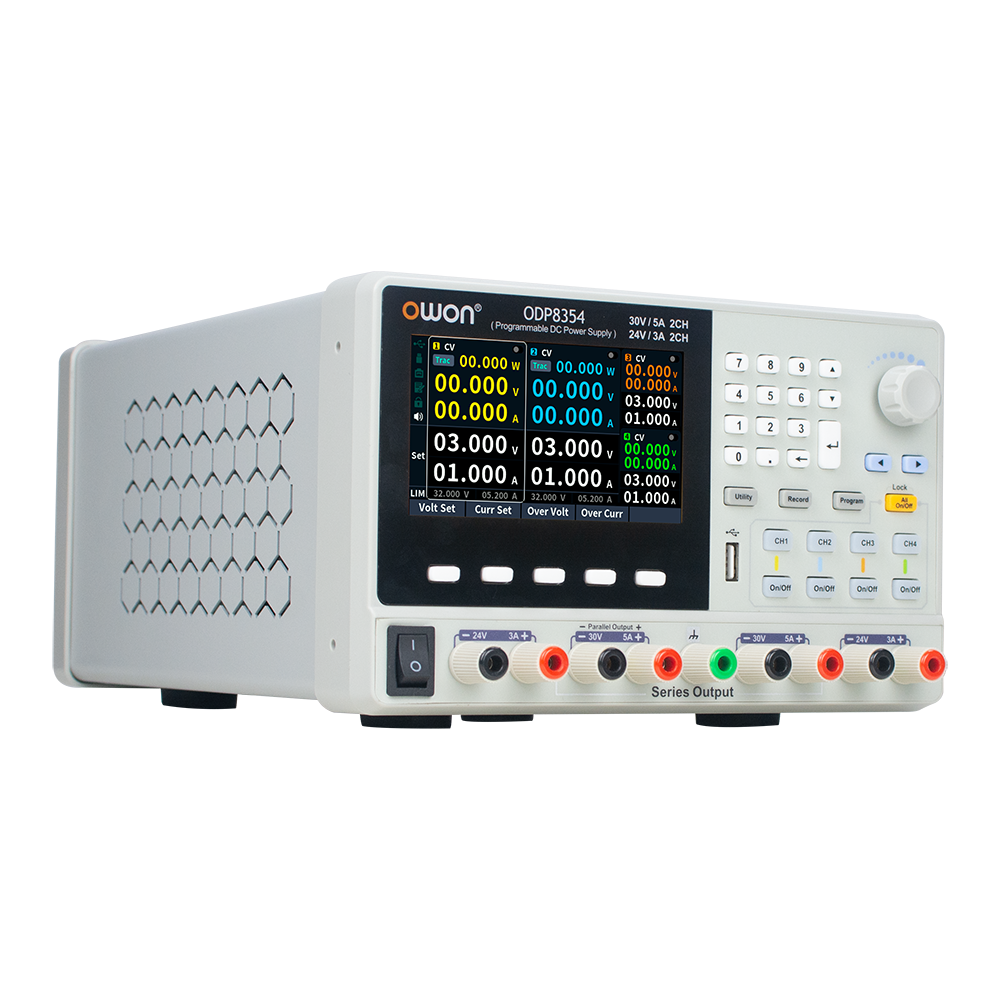

ODP8000 Series Programmable DC Power Supply

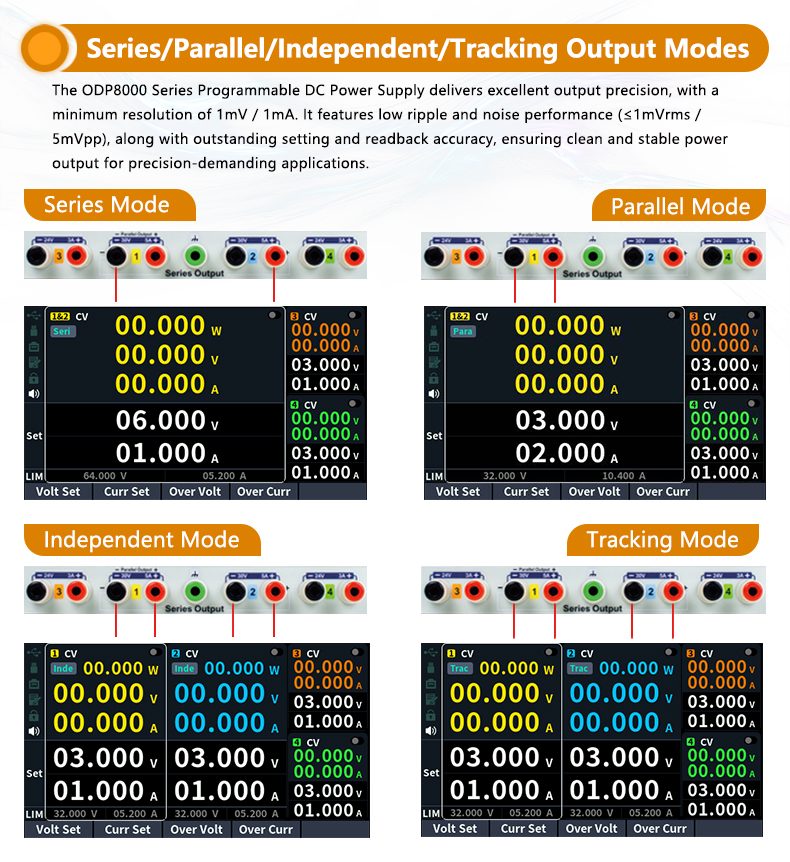

+ 3 or 4-channel independent adjustable output channels; CH1 and CH2 support series/parallel connection
+ CH1/CH2: 5A / 90W constant power; CH3/CH4: 3A / 24W constant power
+ 5-digit voltage/current display with 1mV / 1mA resolution
+ Low ripple and noise: ≤1mVrms / 5mVpp
+ OVP, OCP, OTP, OPP protection for safety and reliability

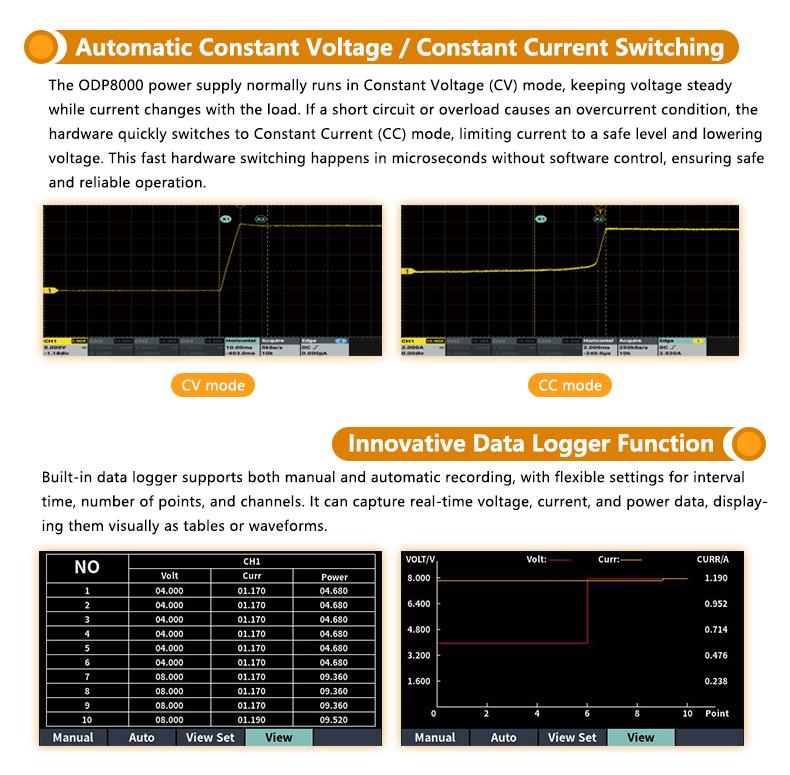

+ Intelligent CV/CC mode switching
+ Supports 100 sets of timed output sequences
+ Remote voltage sensing supported
+ Built-in data logger for displaying voltage, current, and power in table or waveform format
+ System parameter save/recall, with expandable data storage
+ 4.3-inch (480*272) IPS screen for sharp and vivid display

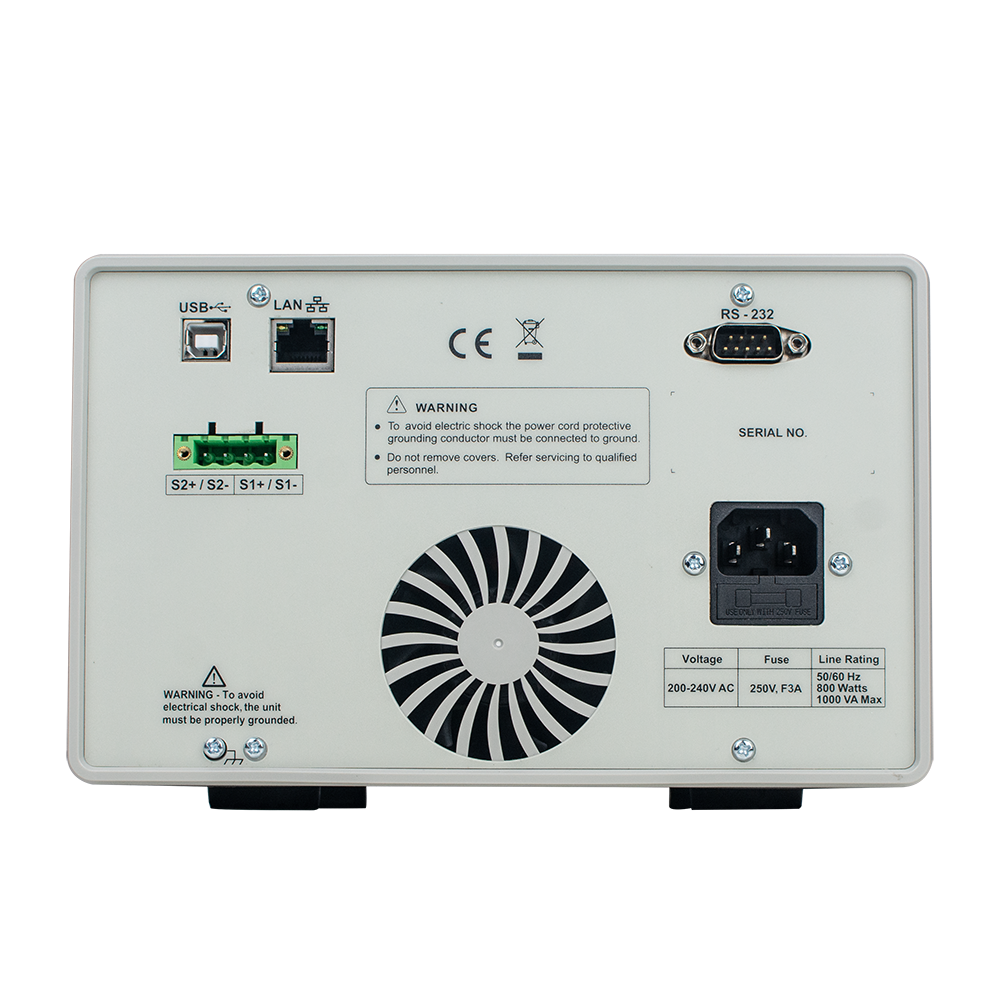

+ Supports USB 2.0, RS232, and LAN communication interfaces
The accessories subject to final delivery.
-
Power Cord -
Quick Guide -
USB Cable -
Fuse -
Test Leads (optional)
|
Model |
ODP8353 |
ODP8354 |
|
Output Ratings |
3 (independent controllable channel) |
4 (independent controllable channel) |
|
Voltage / Current |
CH1: 30V/5A, Maximum 90W constant power output CH2: 30V/5A, Maximum 90W constant power output CH3: 24V/3A, Maximum 24W constant power output |
CH1: 30V/5A, Maximum 90W constant power output CH2: 30V/5A, Maximum 90W constant power output CH3: 24V/3A, Maximum 24W constant power output CH4: 24V/3A, Maximum 24W constant power output |
|
CH1, CH2 Parallel Voltage / Current |
60V/5A, Maximum 180W constant power output |
60V/5A, 180W constant power output |
|
CH1, CH2 Series Voltage / Current |
30V/10A, Maximum 180W constant power output |
30V/10A, 180W constant power output |
|
Max out put power |
204W |
228W |
The specifications below are based on the instrument having run for at least 30 minutes continuously under the specified operating temperature.
|
Model |
ODP8353 |
ODP8354 |
|
|
Settings Resolution |
1mV/1mA |
||
|
Read Back Resolution |
1mV/1mA |
||
|
Settings Accuracy (Within 12 months) (25℃±5℃) |
Voltage |
Independent：±（0.03% of reading+10) mV；Parallel：±（0.03% of reading+10) mV； Series：±（0.06% of reading+20) mV |
|
|
Current |
Independent：±（0.1% of reading+5) mA；Parallel：±（0.2% of reading+20) mA； Series：±（0.1% of reading+5) mA |
||
|
Read Back Accuracy (25℃±5℃) |
Voltage |
Independent：±（0.03% of reading+10) mV；Parallel：±（0.03% of reading+10)mV； Series：±（0.06% of reading+20) mV |
|
|
Current |
Independent：±（0.1% of reading+5) mA；Parallel：±（0.2% of reading+10) mA； Series：±（0.1% of reading+5) mA |
||
|
Noise and Ripple* （20Hz-20MHz） |
Voltage |
Independent：≤5mVp-p；Parallel：≤5mVp-p；Series：≤10mVp-p |
|
|
Voltage |
≤1mVrms |
||
|
Current |
Independent：≤5mArms；Parallel：≤10mArms；Series：≤5mArms |
||
|
Load Regulation |
Voltage |
Independent：≤0.01%+5mV；Parallel：≤0.01%+50mV；Series：≤0.01%+50mV |
|
|
Voltage Regulation |
Voltage |
≤0.01%+3mV |
|
|
Current |
≤0.01%+3mA |
||
|
Read Back Temperature Coefficient |
Voltage |
100ppm/℃ |
|
|
Current |
200ppm/℃ |
||
|
Programmable output |
Storage |
1M points; 100 groups |
|
|
Time setting |
Second |
||
|
Data Record Function |
10k groups of data (voltage, current, power) |
||
|
Working temperature |
0-40℃ |
||
|
Ports |
USB Host, USB Device, RS232, LAN, supports USB TMC protocol |
||
|
Display |
4.3 inch IPS LCD |
||
|
Dimension |
290mm（W）*130mm（H）*212mm（D） |
||
|
Device weight |
≈9kg |
||
*Noise bandwidth 20MHz,ripple bandwidth 1MHz, connect 10uF electrolytic capacitor in parallel with 0.1uF ceramic capacitor to eht output terminal for testing.
