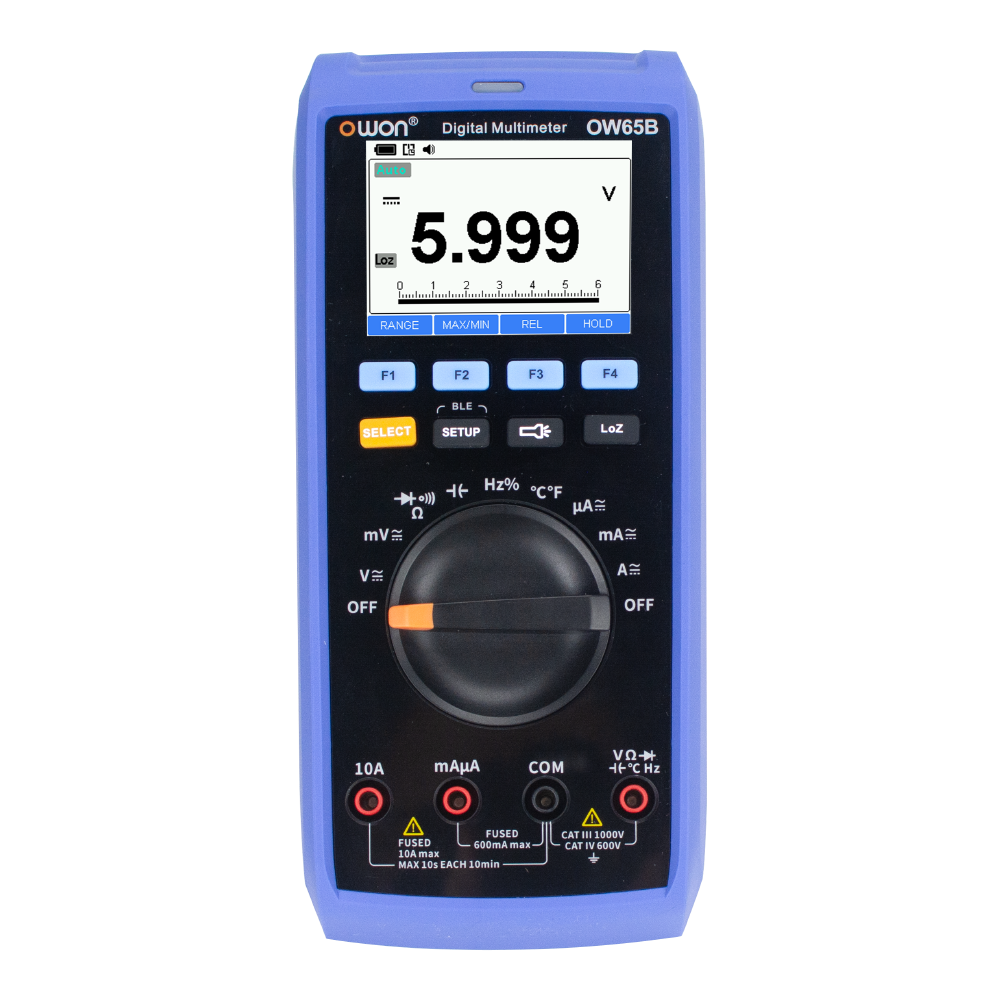

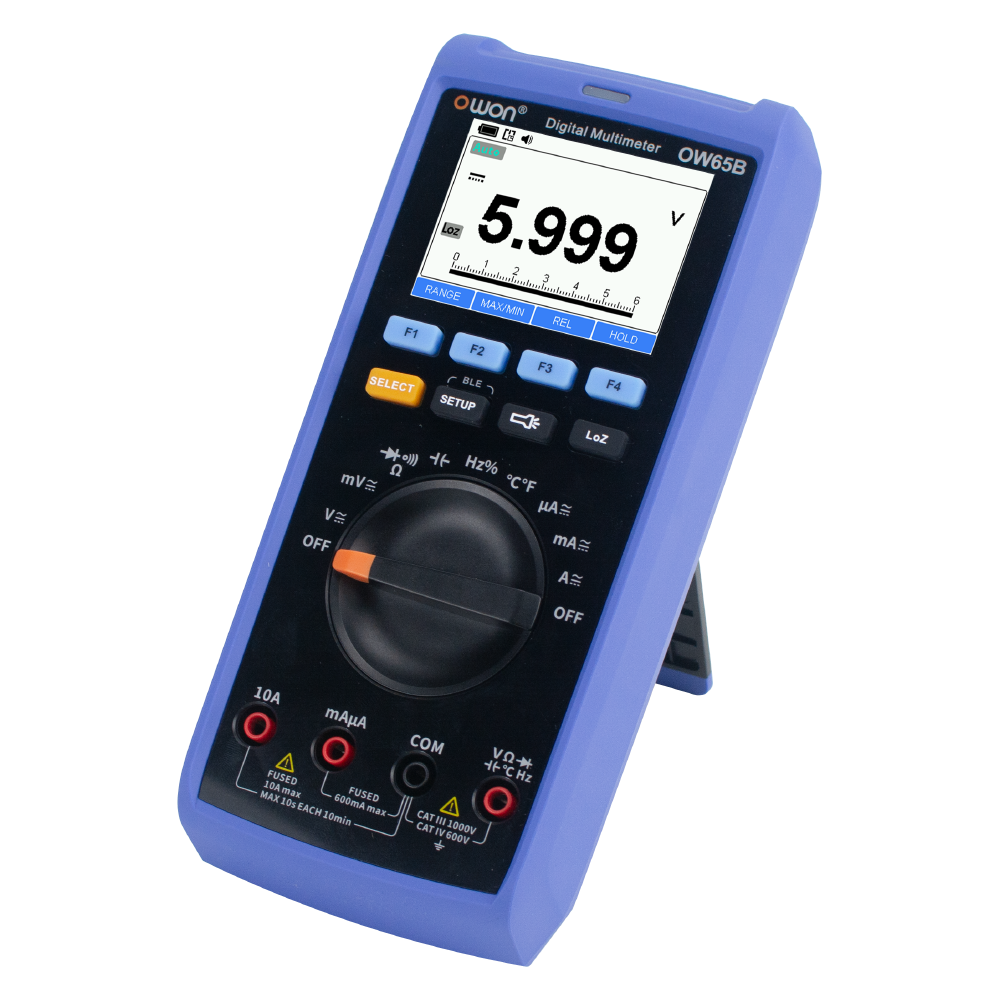

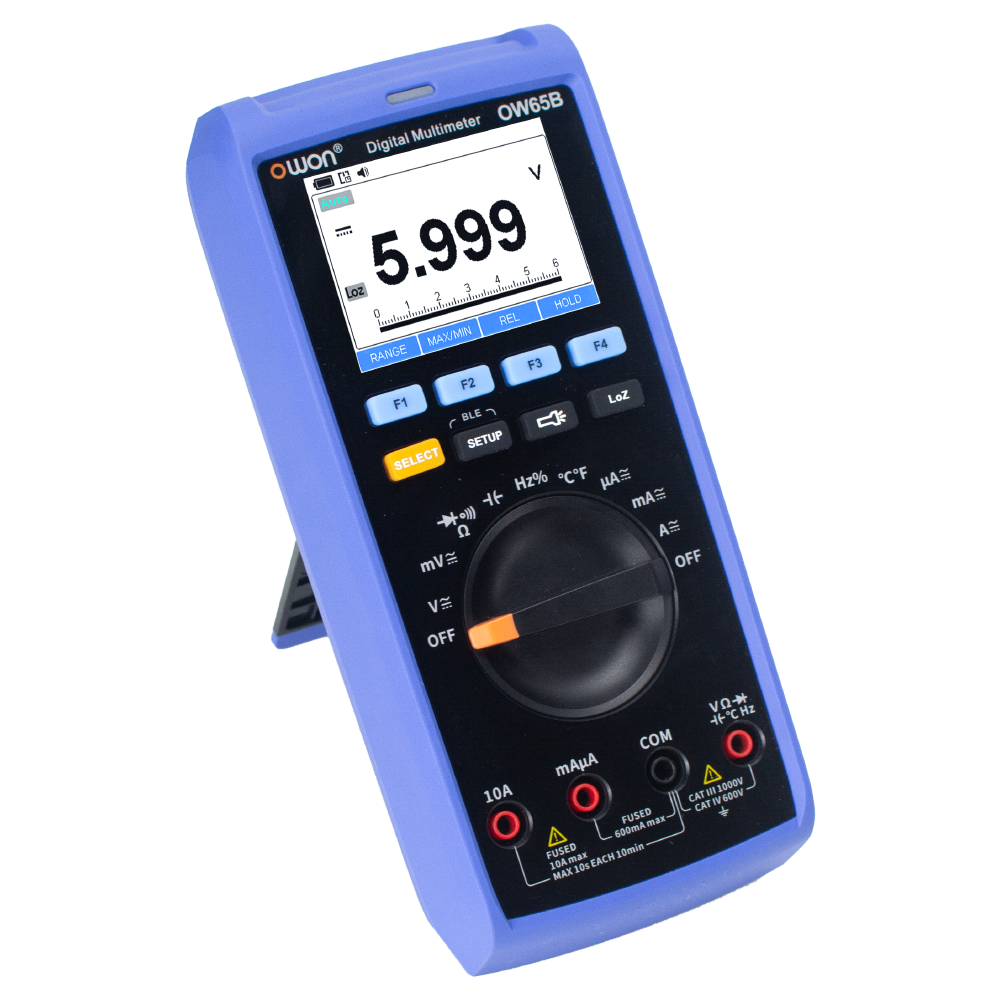

OW65/OW65B Industrialgrade handheld multimeter
+ Compliant with CAT III 1000 V, CAT IV 600 V, and built-in 1000 V high-performance fuse
+ Adopting a fully enclosed adhesive treatment, not only does it provide a comfortable feel, but it also effectively prevents damage caused by accidental drops

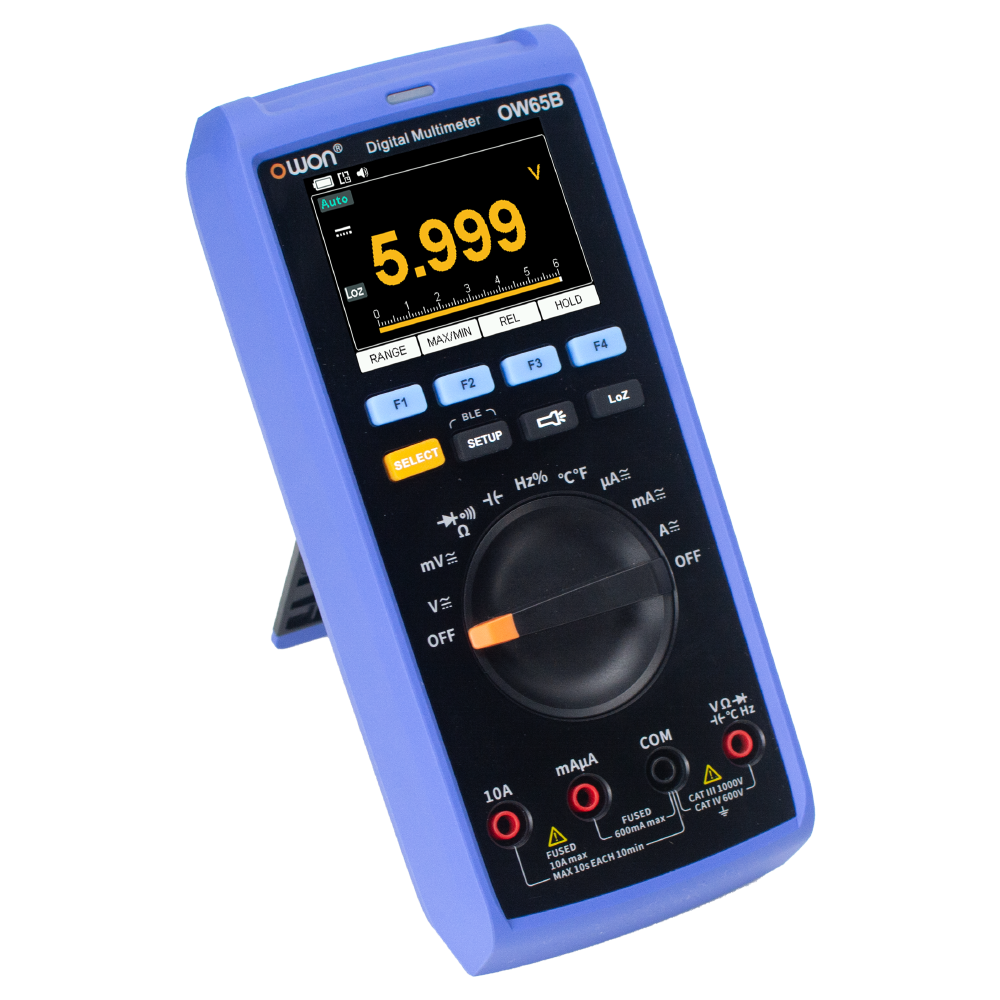

+ A wide bracket made of soft rubber, which can keep instruments in place whether placed flat, standing, suspended, or suspended

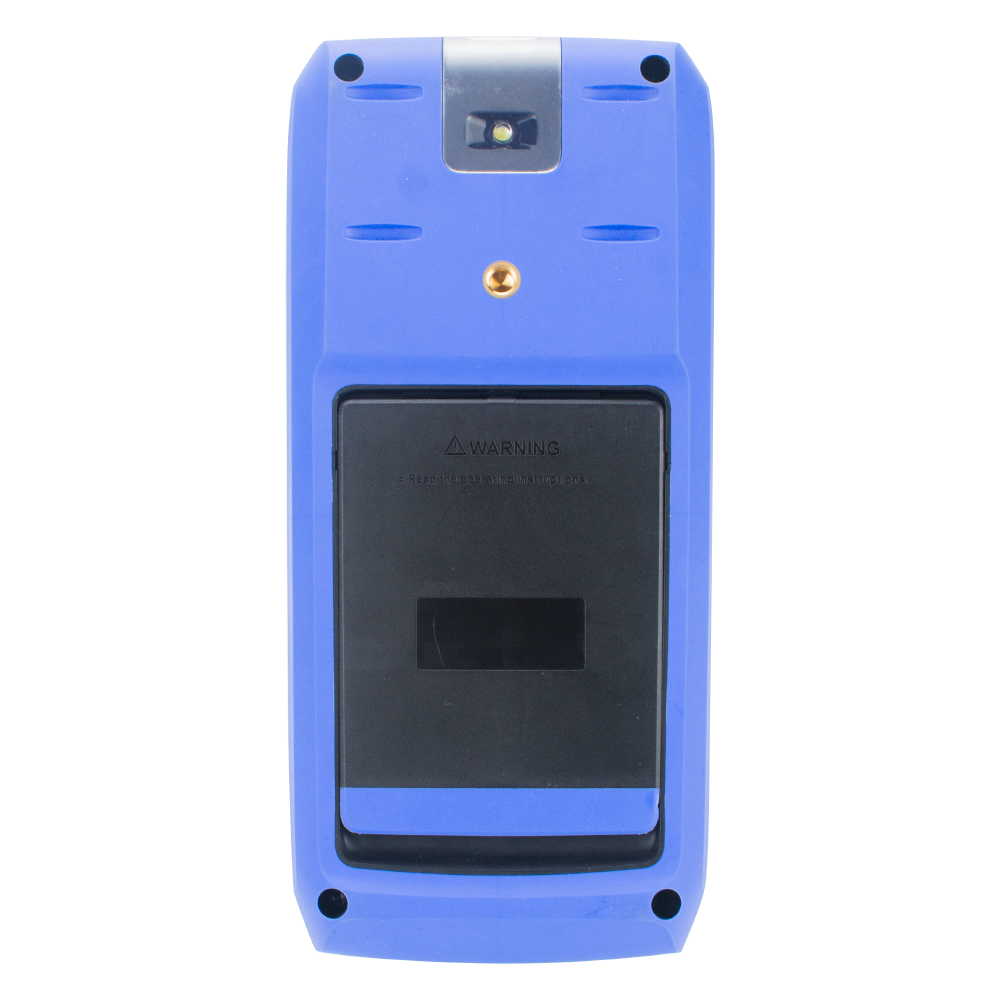

+ The shell is integrated with a super strong magnet, which can easily adhere to iron surfaces such as switch cabinet doors, making it convenient to fix equipment when operated with one hand
+ Bluetooth communication, supporting both Android and Apple systems, ushering in a new era of intelligent measurement (OW65B)
+ Mobile remote control function, meeting special environmental testing requirements, safe and convenient (OW65B)
+ Data logger: Through the APP, measurement data can be viewed, compared, analyzed, and stored, efficiently managing test information (OW65B)
+ 2.8-inch IPS LCD display with wide viewing range, making numerical and waveform display clearer

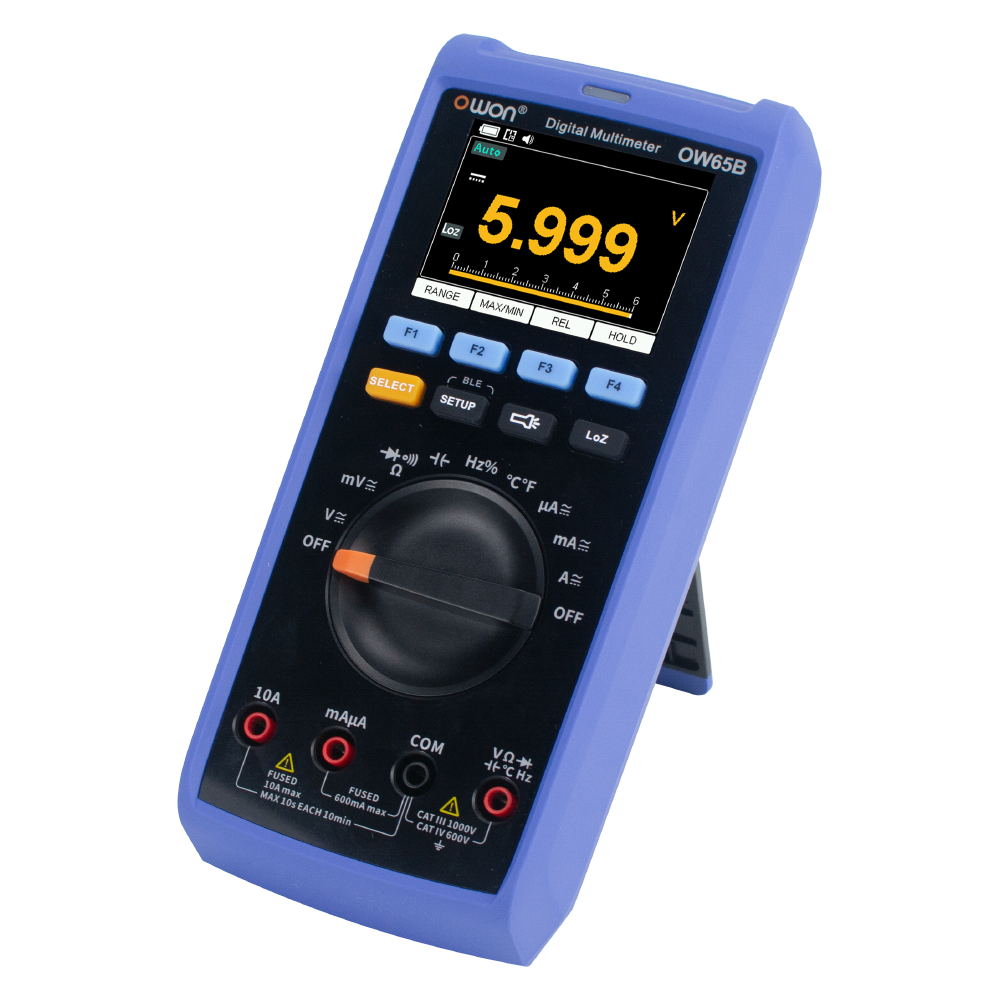

+ Dual theme display, adaptable to different lighting environments, ensuring clearer display effects
+ Built in two LED lights, convenient for you to find circuits and fuses in the dark
+ Using silicone probes, durable, safe, and easy to clean
The accessories subject to final delivery.
-
Quick Guide -
Soft Bag -
Silicone Probes -
Battery (optional) -
K-type Thermocouple
|
|
Meaurement Range |
Accuracy |
|
DC Voltage |
60.00mV |
±(0.5%+10 dig) |
|
600.0mV / 6.000V / 60.00V / 600.0V |
±(0.5%+5 dig) |
|
|
1000V |
±(0.8%+5 dig) |
|
|
AC Voltage |
600.0mV |
±(1%+10dig) |
|
6.000V |
±(0.8%+8dig) |
|
|
60.00V/600.0V |
±(0.8%+5dig) |
|
|
1000V |
±(1%+5ig) |
|
|
DC Current |
600.0uA |
±(0.8%+8dig) |
|
6000uA |
±(0.8%+5dig) |
|
|
60.00mA |
±(0.8%+8dig) |
|
|
600.0mA |
±(0.8%+5dig) |
|
|
6.000A |
±(1.5%+8dig) |
|
|
10.00A |
±(1.5%+8dig) |
|
|
AC Current |
600.0uA |
±(1%+5dig) |
|
6000uA |
±(1%+5dig) |
|
|
60.00mA |
±(1%+5dig) |
|
|
600.0mA |
±(1%+5dig) |
|
|
6.000A |
±(1.5%+10dig) |
|
|
10.00A |
±(1.5%+10dig) |
|
|
Resistance (Ω) |
600.0Ω |
±(0.8%+5dig) |
|
6.000KΩ |
±(0.8%+5dig |
|
|
60.00KΩ |
±(0.8%+5dig) |
|
|
600.0KΩ |
±(0.8%+5dig |
|
|
6.000MΩ |
±(1.0%+5dig) |
|
|
60.00MΩ |
±(2%+5dig |
|
|
Capacitance (F) |
60.00nF |
±(3%+5dig) |
|
600.0nF |
±(3%+5dig) |
|
|
6.000uF |
±(3%+5dig) |
|
|
60.00uF |
±(3%+5dig) |
|
|
600.0uF |
±(3%+5dig) |
|
|
6.000mF |
±(4%+10dig) |
|
|
60.00mF |
±(4%+10dig) |
|
|
Temperature |
'-40 ~ 40 ºC |
±(2.5%+5dig) |
|
'40 ~ 100 ºC |
±(1%+3dig) |
|
|
'100 ºC ~ +1000ºC |
±(3%+5dig) |
|
|
-40~32°F |
±(4%+8dig) |
|
|
32~210°F |
±(2%+8dig) |
|
|
210~1832°F |
±(5%+8dig) |
|
|
Frequency (Hz) |
9.999Hz~9.999MHz |
±(0.1%+3dig) |
|
Duty cycle |
0.1%~99.9%(typical value：Vrms=1V,f=1kHz) |
|
|
0.1%~99.9%(≥1kHz) |
||
|
Diode |
3.0000V |
|
|
Max Display |
5999 |
|
