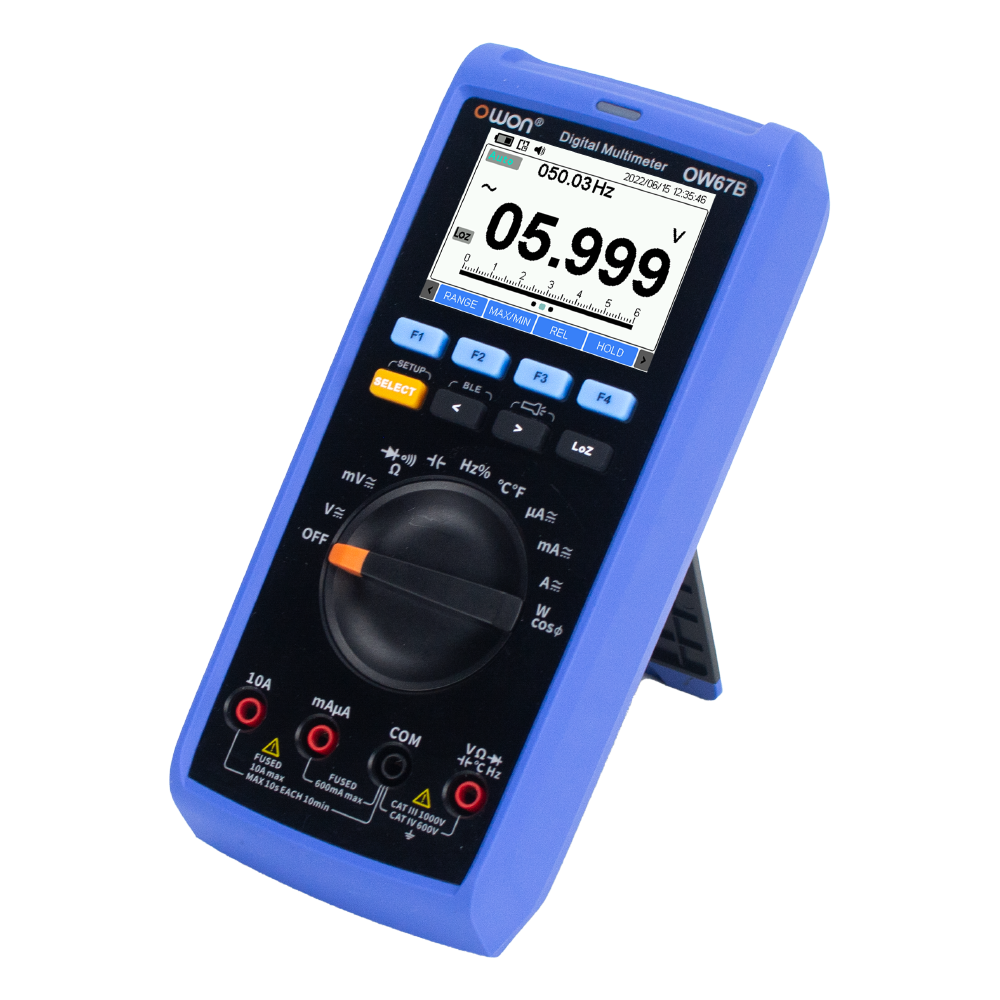

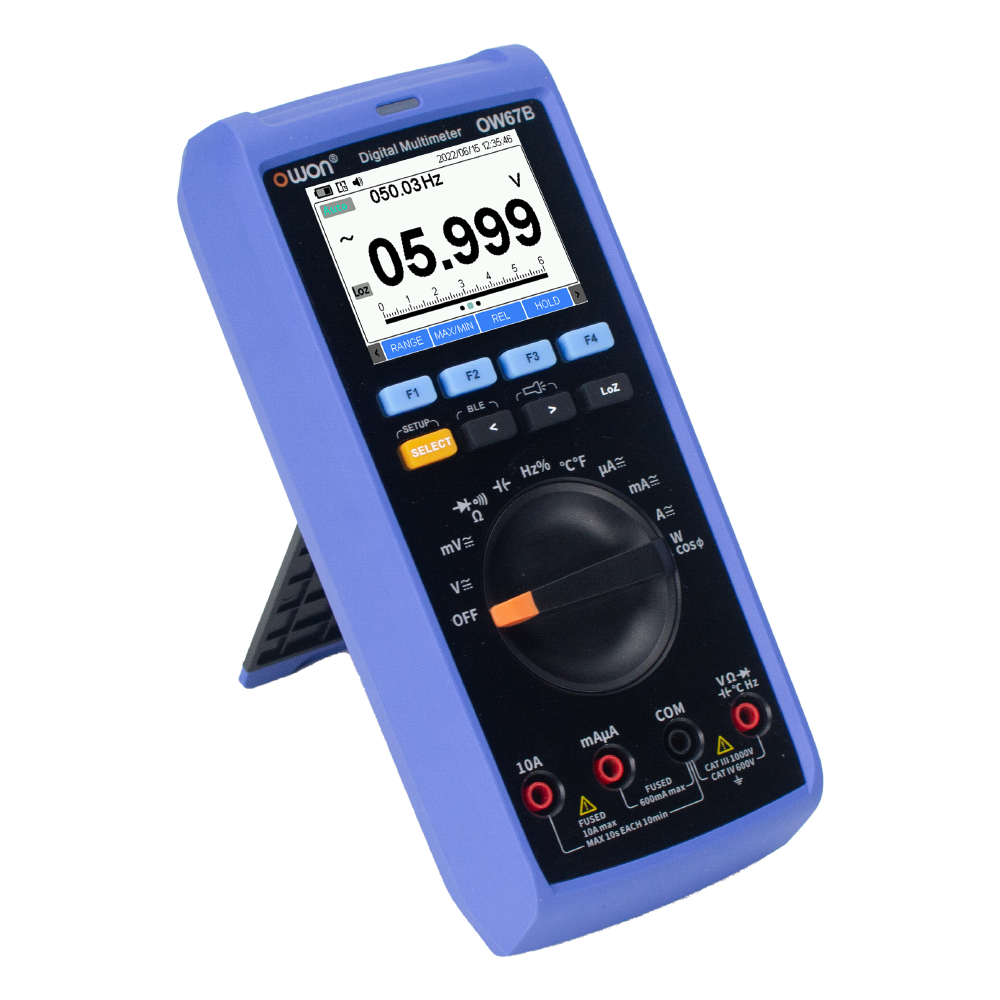

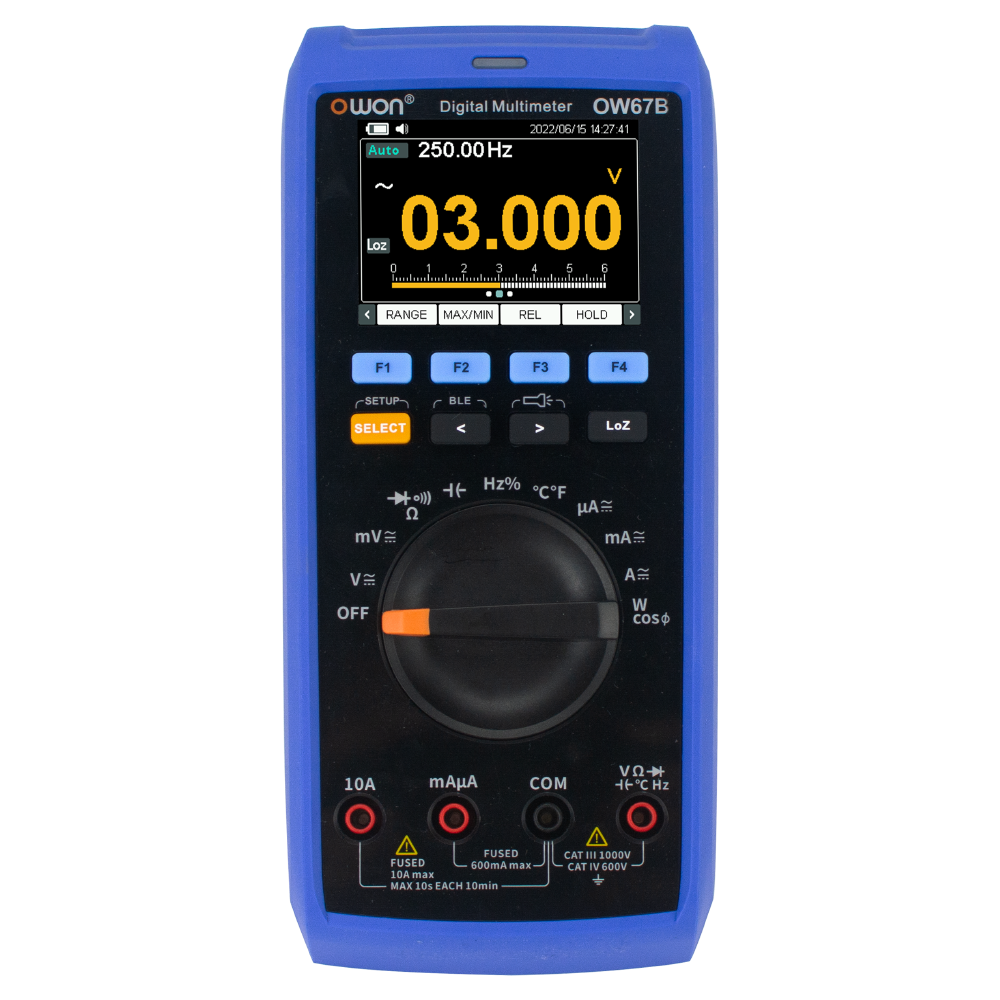

OW67/OW67B IndustrialGrade Multimeter
+ Compliant with CAT III 1000 V, CAT IV 600 V, and built-in 1000 V high-performance fuse
+ Adopting a fully enclosed adhesive treatment, not only does it provide a comfortable feel, but it also effectively prevents damage caused by accidental drops
+ A wide bracket made of soft rubber, which can keep instruments in place whether placed flat, standing, suspended, or suspended

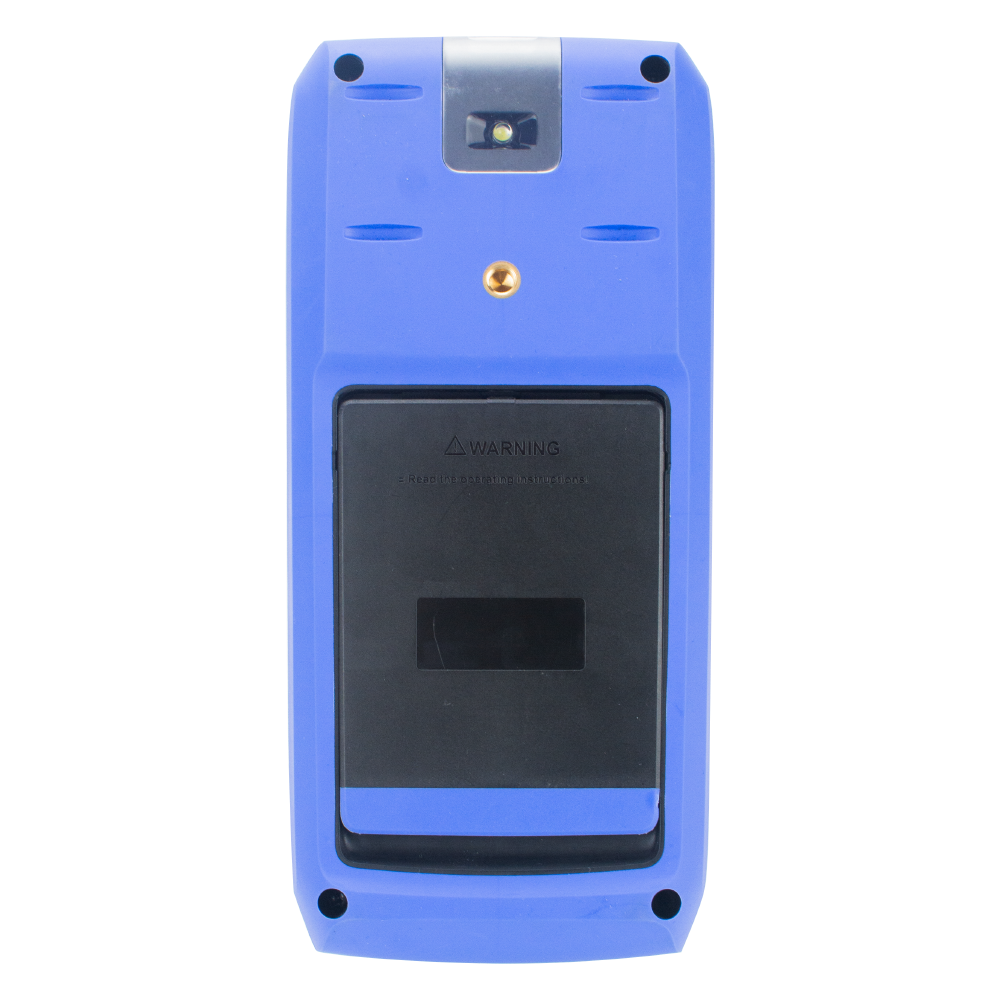

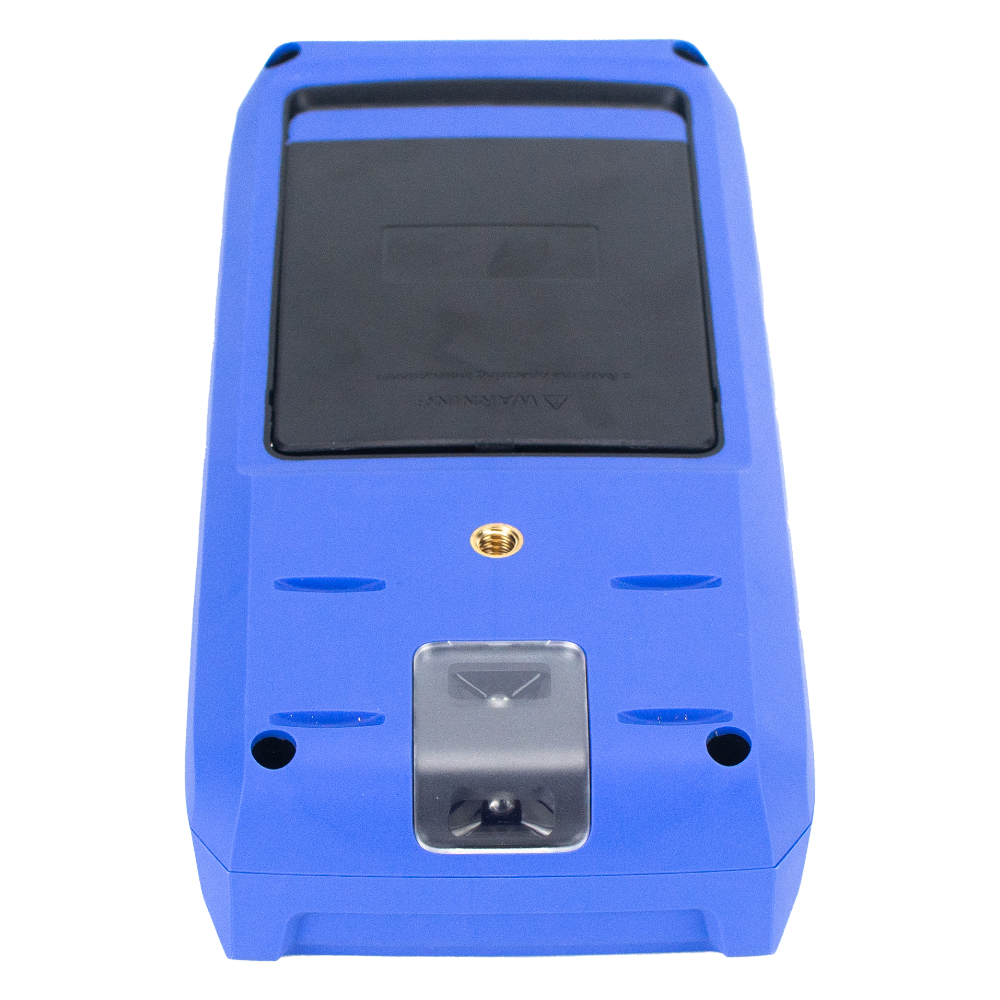

+ The shell is integrated with a super strong magnet, which can easily adhere to iron surfaces such as switch cabinet doors, making it convenient to fix equipment when operated with one hand
+ Power measurement: up to 2500W power output can be measured, and with optional accessories, the power consumption of AC/DC power supply and USB port can be directly read, including multiple parameters such as active power, apparent power, voltage, current, etc
+ 4-20mA signal conversion: supports intuitive display of current changes in percentage form
+ Alarm settings: Allow customization of upper and lower limit ranges, triggering warning prompts once the preset threshold is exceeded

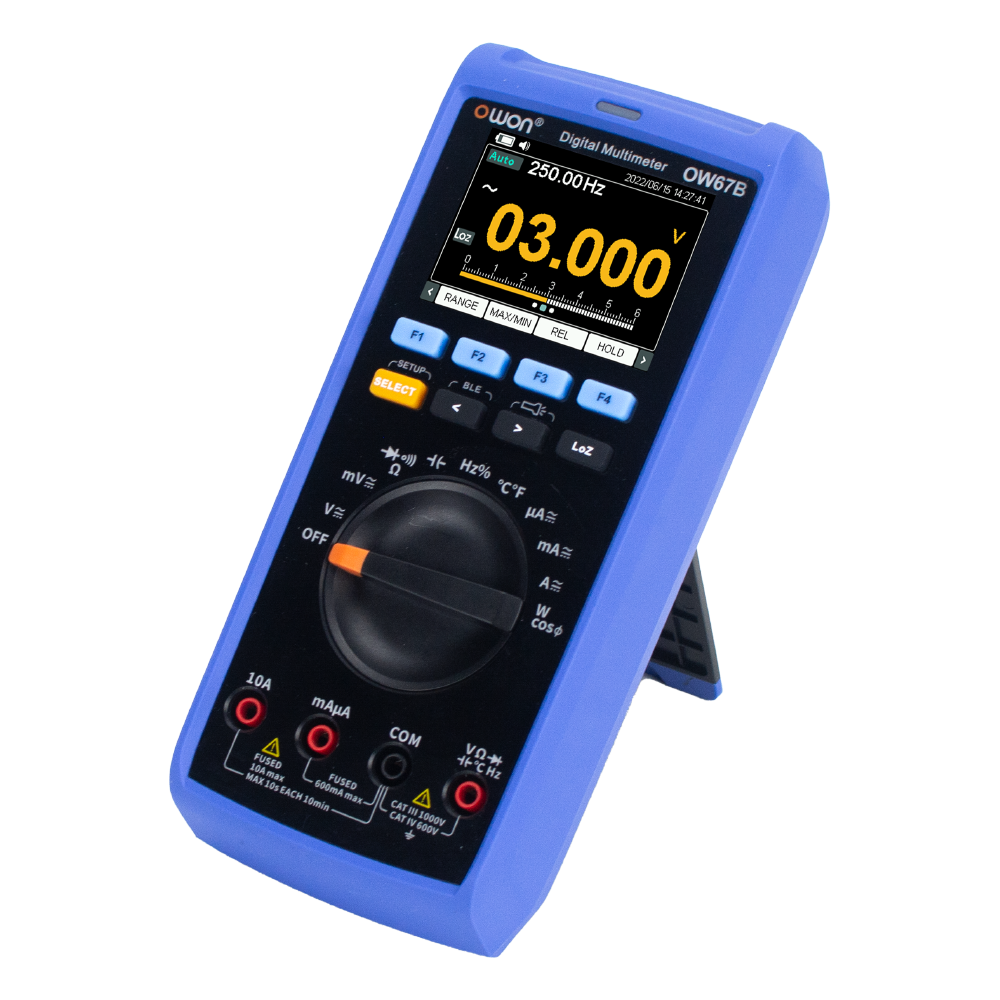

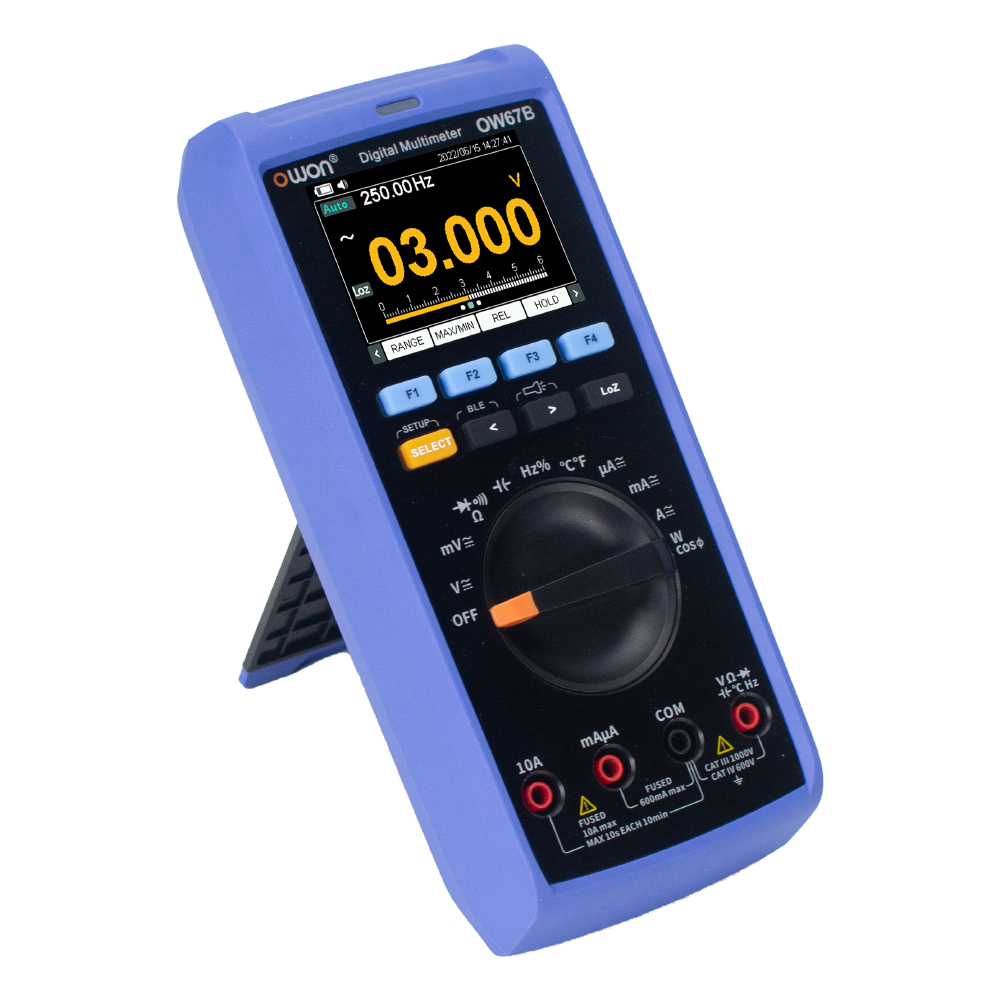

+ 2.8-inch IPS LCD display with wide viewing range, making numerical and waveform display clearer
+ Dual theme display, adaptable to different lighting environments, ensuring clearer display effects
+ Built in two LED lights, convenient for you to find circuits and fuses in the dark
+ Standard magnetic silicone probe, durable, safe, and easy to clean
The accessories subject to final delivery.
-
Quick Guide
-
Soft Bag
-

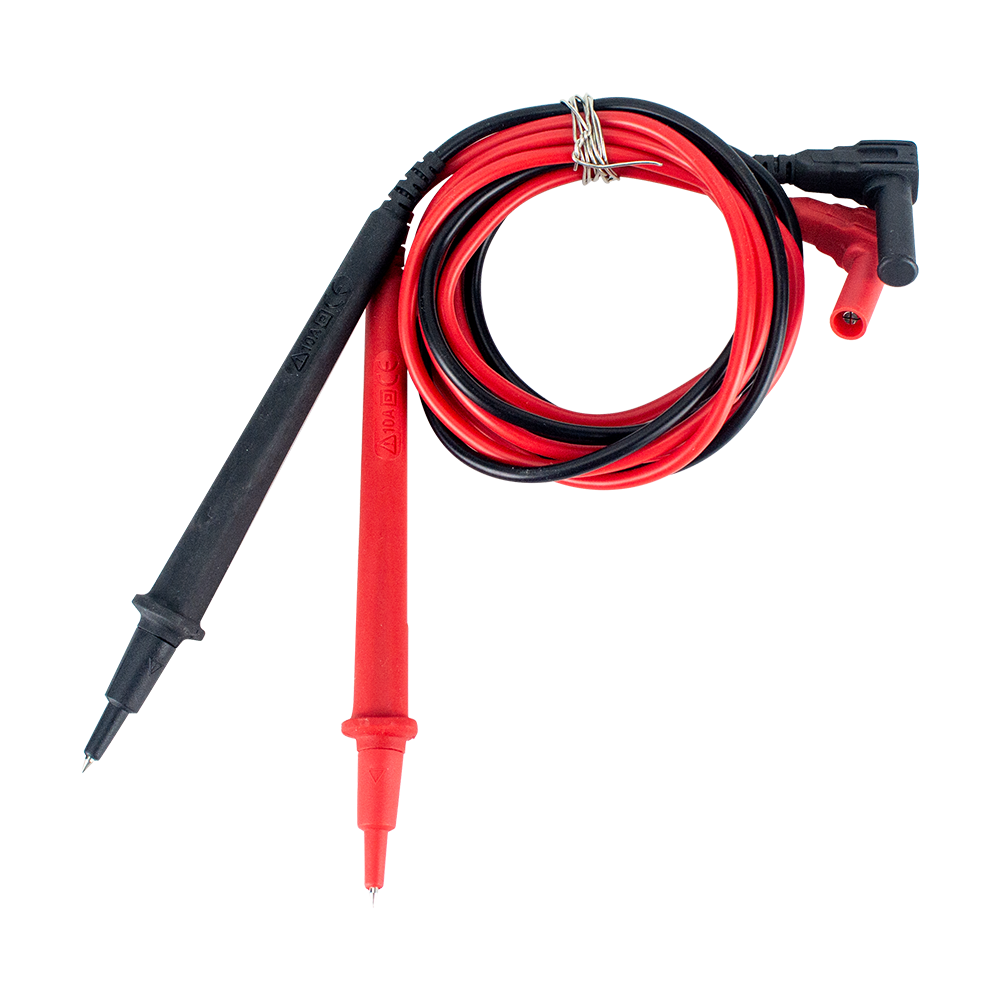

Silicone Probes
-

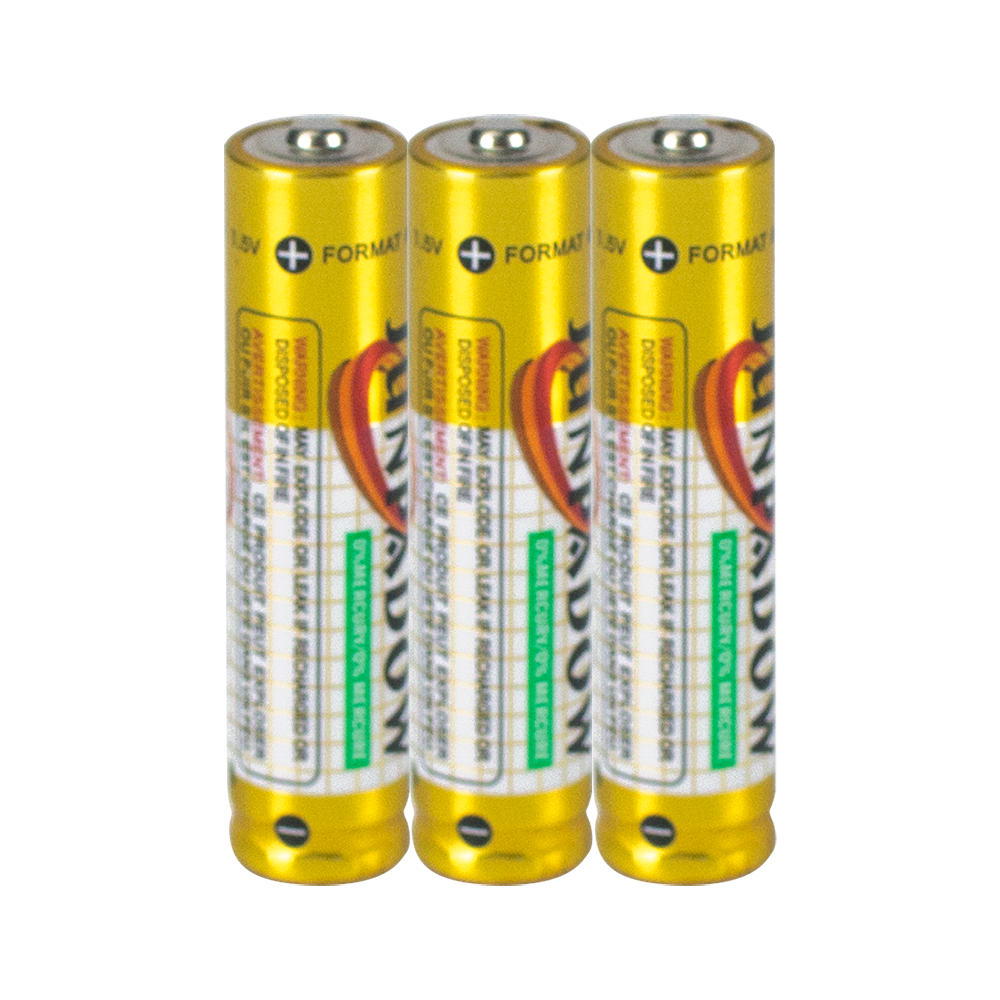

Battery (optional)
-

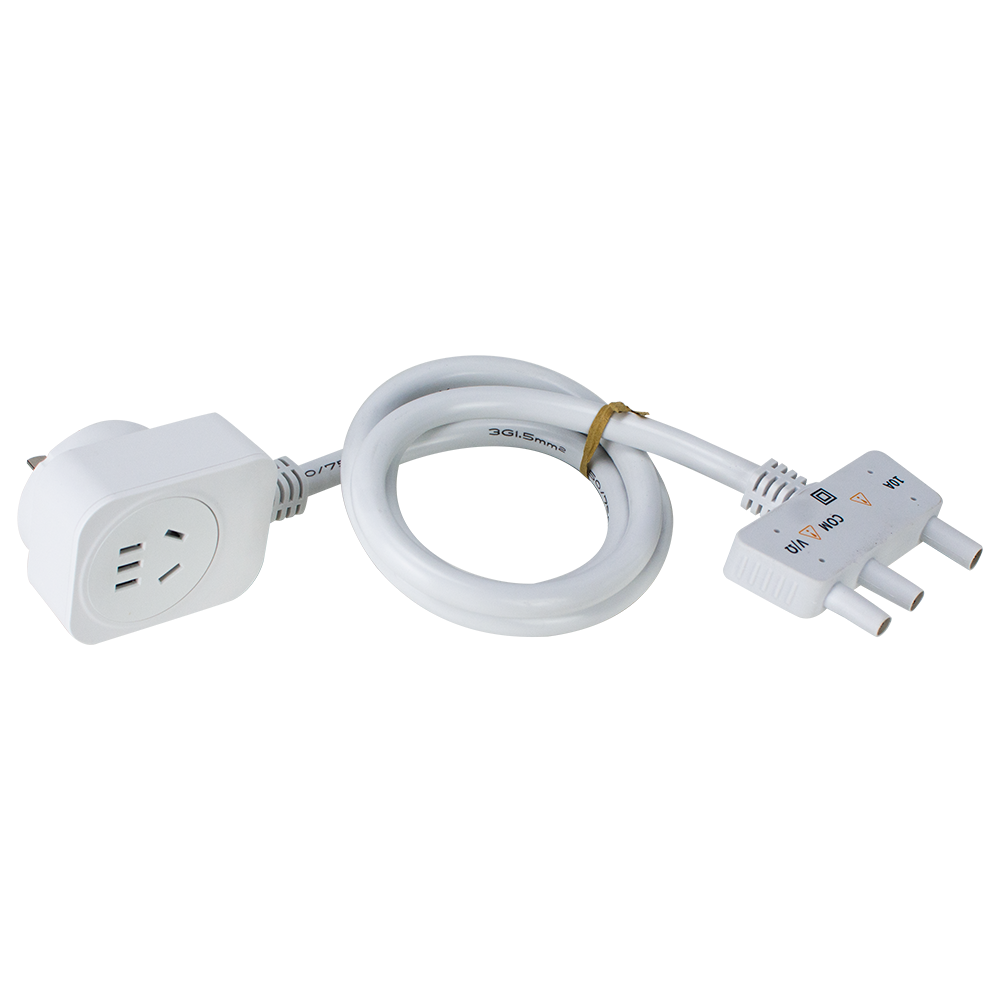

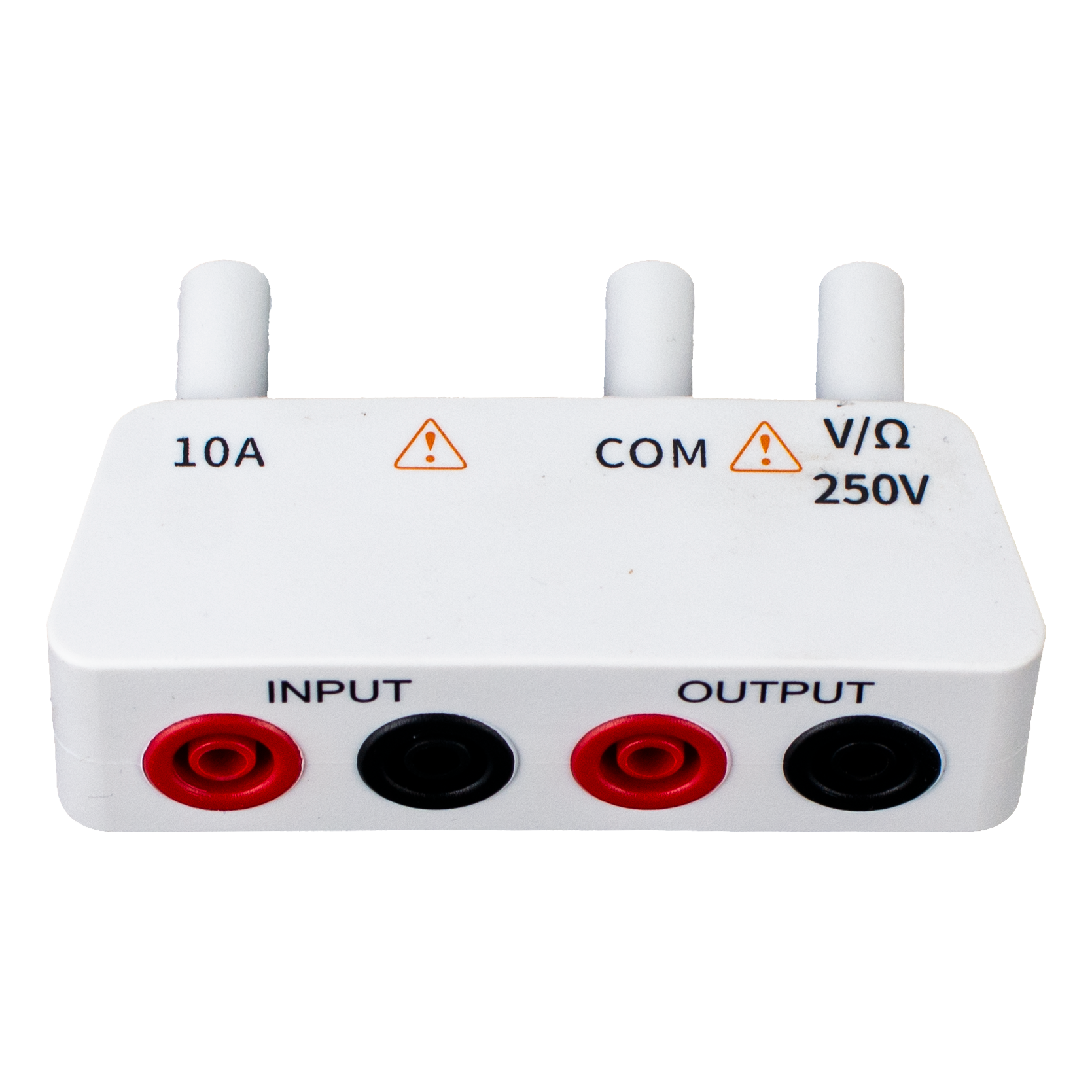

AC power measurement module (optional)
-

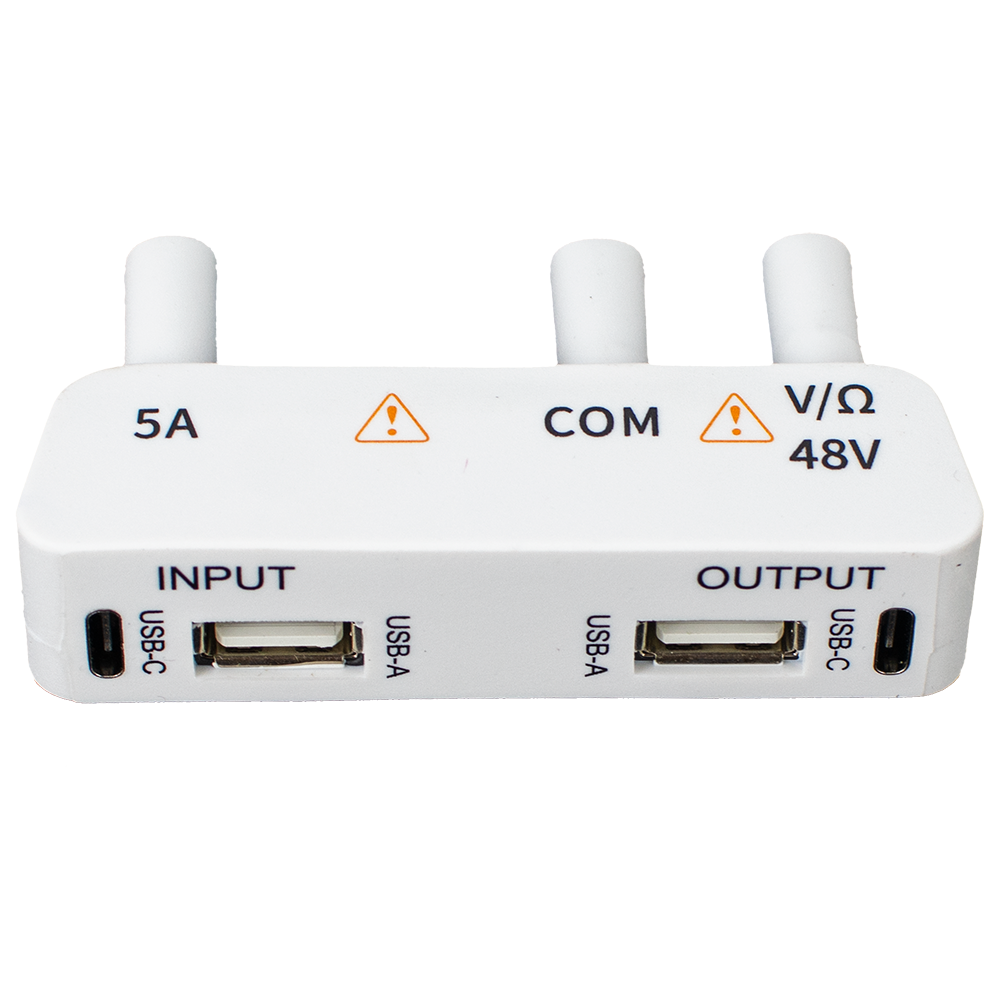

USB power measurement module (optional)
-
DC power measurement module (optional)
-

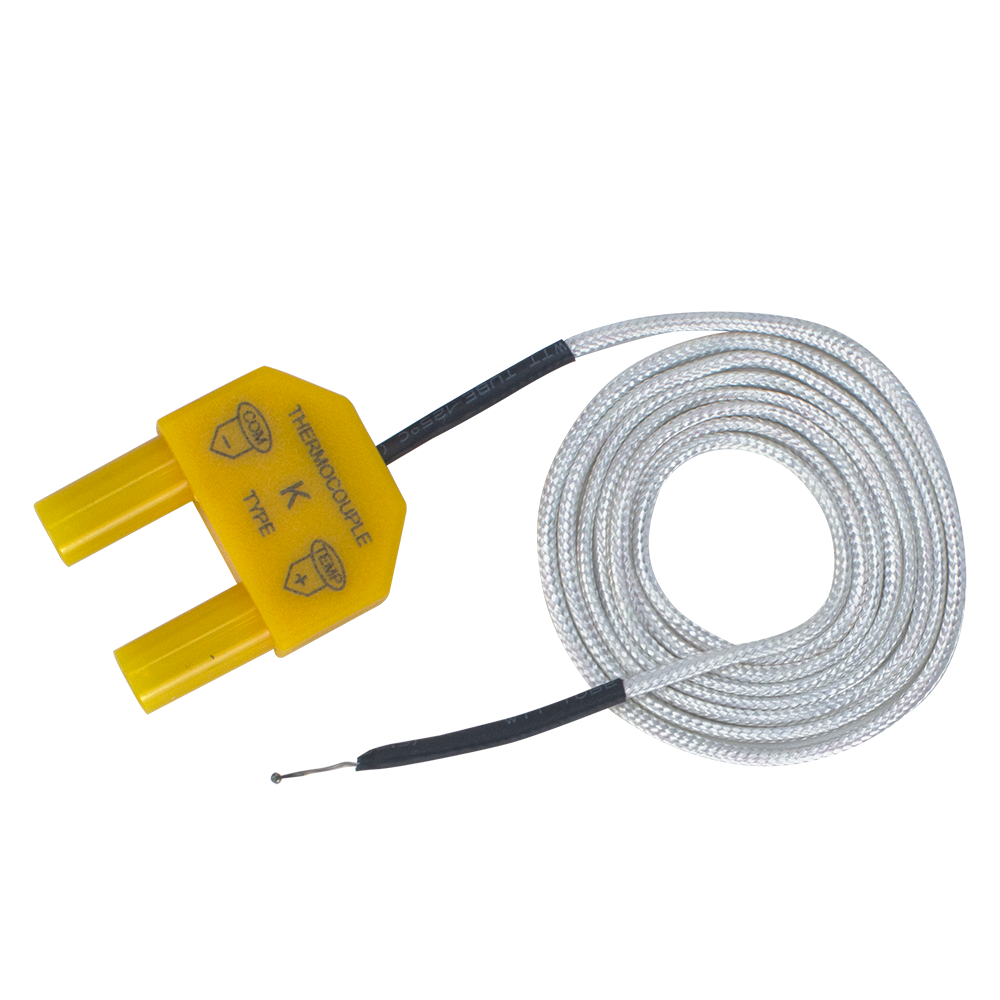

K-type Thermocouple
|
Measurement Range |
Accuracy |
DC Voltage |
60.000mV |
±(0.2%+30 dig) |
600.00mV |
±(0.08%+5 dig) |
|
6.0000V |
±(0.08%+6 dig) |
|
60.000V |
±(0.08%+6 dig) |
|
600.00V |
±(0.1%+6 dig) |
|
1000.0V |
±(0.15%+6 dig) |
|
AC Voltage |
600.0mV |
±(0.8%+10 dig) |
6.000V |
±(0.8%+5 dig) |
|
60.00V |
±(0.8%+5 dig) |
|
600.0V |
±(0.8%+5 dig) |
|
1000V |
±(1%+5 dig) |
|
DC Current |
600.00uA |
±(0.5%+10 dig) |
6000.0uA |
±(0.5%+5 dig) |
|
60.000mA |
±(0.6%+10 dig) |
|
600.00mA |
±(0.6%+5 dig) |
|
6.0000A |
±(1%+10 dig) |
|
10.000A |
±(1.2%+7 dig) |
|
AC Current |
600.0uA |
±(1%+5 dig) |
6000uA |
±(0.8%+5 dig) |
|
60.00mA |
±(0.8%+5 dig) |
|
600.0mA |
±(0.8%+5 dig) |
|
6.000A |
±(1%+10 dig) |
|
10.00A |
±(1.2%+10 dig) |
|
Resistance (Ω) |
600.00Ω |
±(0.5%+10 dig) |
6.0000KΩ |
±(0.3%+10 dig) |
|
60.00KΩ |
±(0.2%+5 dig) |
|
600.0KΩ |
±(0.2%+5 dig) |
|
6.000MΩ |
±(0.6%+5 dig) |
|
60.00MΩ |
±(1.5%+7 dig) |
|
Capacitance (F) |
60.000nF |
±(2.5%+20 dig) |
600.00nF |
±(2.5%+20 dig) |
|
6.0000uF |
±(2.5%+20 dig) |
|
60.000uF |
±(2.0%+20 dig) |
|
600.00uF |
±(2.5%+20 dig) |
|
6000.0uF |
±(4%+20 dig) |
|
60.000mF |
±(5%+20 dig) |
|
Temperature |
'-40 ~ 40 ºC |
±(2%+30 dig) |
'40 ~ 100 ºC |
±(1%+20 dig) |
|
'100 ºC ~ +1000ºC |
± 3% |
|
-40~32°F |
±(4%+8dig) |
|
32~210°F |
±(2%+8dig) |
|
210~1832°F |
±(5%+8dig) |
|
Frequency (Hz) |
60.000Hz~60.000MHz |
±(0.08%+5 dig) |
Loop current 4 - 20 mA/DC |
0-100% |
±(1.2%+2 dig) |
Diode |
3.0000V |
|
Max Display |
60000 |
|
AC Power Measurement |
||
Effective power |
2500W |
±(2%+10 dig) |
Apparent power |
2500VA |
±(2%+10 dig) |
Voltage |
250.0V |
±(1%+10 dig) |
Current |
10 |
|
Cos-Phi |
1 |
|
Frequency |
50/60Hz |
