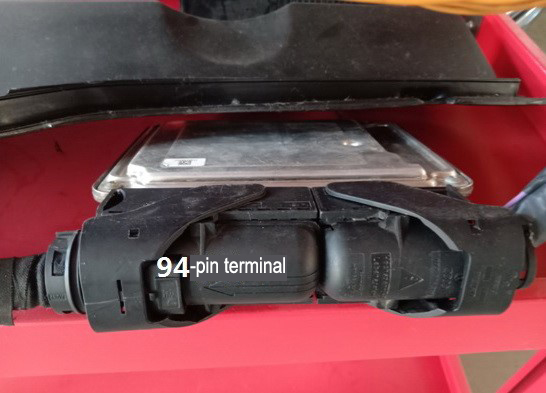

Connect channel 1 and channel 2 of TAO3104A tablet oscilloscope to the CAN line, CH1 to CAN-H, and CH2 to CAN-L. The CAN cable is located at the 68 and 67 terminals of the ECU94 pin plug.

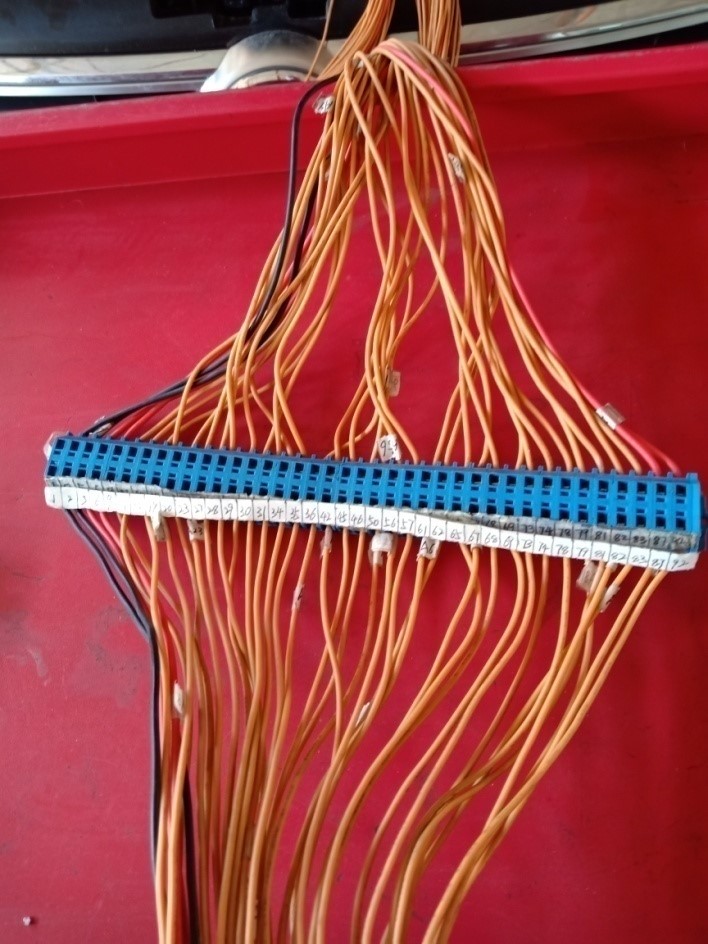

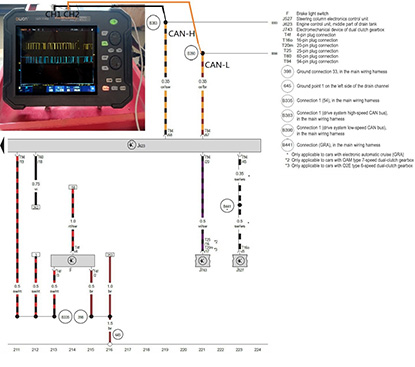

We use the external wiring harness to test, in the figure below, 68 is CAN-H, 67 is CAN-L.

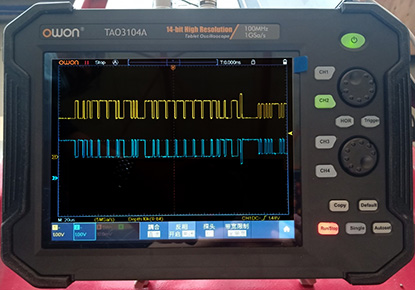

The waveform obtained by using TAO3104A tablet oscilloscope is as follows:




Waveform Features:

● The voltage of CAN-H varies from 2.5V to 3.5V, and the average voltage tested with a multimeter is 2.8V.

● The voltage of CAN-L varies from 2.5V to 1.5V, and the average voltage tested with a multimeter is 2.2V.

● Symmetrical waveform.

● The drive CAN line does not have the ability to operate in a single line.

● When the ignition switch is turned off, the drive CAN will stop "jumping". When the ignition switch is at "ON", it will start to "jump", that is, start to transmit information.
